UPVC/PVC Corrugated Sheets Extrusion Machine

Product Description

upvc/pvc corrugated roofing sheets extrusion machine

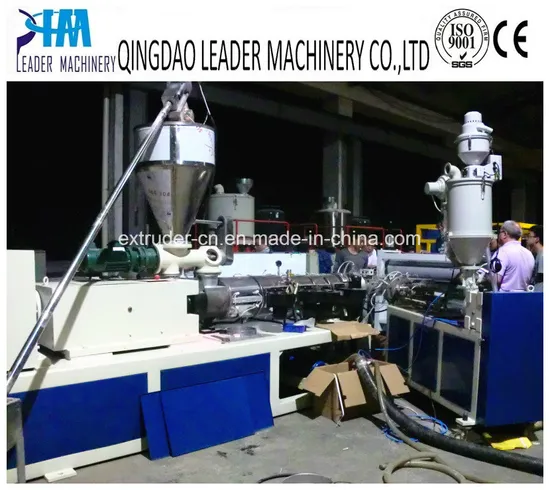

This corrugated roofing sheets extrusion machine is used to produce corrugated roofing sheets. This machine consists of: It includes a twin-screw extruder, a mould, a calibration unit, a haul-off unit, a cutter, a tilter and so on.
Characteristics of PVC corrugated title: bright color, easy cutting, portability, fire-resistance, erosion resistance.
Application: workshop, warehouse, carport, terminal market, road boarding, veranda, heat insulation canopy etc.

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic spring feeding machine			1 set
2	Conical twin screw extruder SJSZ-80/156			1 set
3	Single screw extruder SJ-45/30 or 65/30 for UV extrusion			1 set
4	T-type /hanger type die head (JC-Times brand)			1 set
5	Corrugation forming boards			1 set
6	Cooling frame and edge cutting unit			1 set
7	Haul off machine			1 set
8	Plastic cutting machine-guillotine with meter counting			1 set
9	Stacker			1 set
10	Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
11	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	High speed hot and cold mixer SRL-Z 300/600		1 set
2	Plastic crusher SWP-450		1 set
3	Plastic pulverizer SMP-400		1 set
4	Air compressor		1 set
5	Industrial water chiller		1 set
PART 3 SHEET APPLICATIONS
1	Roof panels, roof tiles, roof sheets, ceilings
2	Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers, Pergolas, cladding
PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1	Payment terms	40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	70 days after receipt of prepayment
3	Packing method	Wooden cases/pallets with stretching films
4	Guaranteed time	18 months for mechanical parts, 12 months for electrical parts
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6	Contact	Ms Lilly Zhou (mob: 0086-15266238607)

Sheet specifications
Sheet width	720,760,820,840,860,880,900,930,950,980,1050mm etc
Sheet thickness	0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm
Sheet length	4m, 6m or customized
Sheet weight	1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2
Suitable environment	-40(50)ºC-70ºC
Surface treatment	With UV coating
Service life	More than 25 years, 10years can be guaranteed
Colors and tints	Clear, bronze, opal
Textures	Can be textures
Sheet features
1	Weatherable and durable
2	UV-protection
3	Wide range of profiles
4	High impact option
5	Lightweight and easy to handle
6	Low maintenance
7	Chemical resistance
8	Excellent fire performance
9	Economical
10	10 years warranty

SAMPLE PICTURES:
PART 5 DELIVERY, PAYMENT AND OTHERS SERVICES
1. delivery time: 90 days after receiving the deposit
2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
4. Service: we will send engineers to customers' factory to help them install, test the machine.
5. Contact: Ms Lilly Zhou, : mob : 0086-15266238607
PART 6 COMPANY INFORMATION AND MAIN PRODUCTS:
PART 7 COMPANY CERTIFICATIONS:
PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 9 COMPANY OVERSEA SHOWS
PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.


Best regards!
Sincerely yours,
Lilly Zhou, Sales Manager

Qingdao Leader Machinery Co.,Ltd
Address: South of Yangjialin, Beiguan, Jiaozhou, Qingdao, China
Postal No.: 266300
Tel/fax: 0086-532-86620998, 86622373, 82278979
Website: http://extruder-cn.en.made-in-china.com
Mob: 0086-152 6623 8607

---
