Basic Info.
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Function
Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Product Name
Circuit Breaker
Rated Current
0.1 up to 25A
Transport Package
Export Packing
Specification
CE with standard IEC60898
Origin
Wenzhou, Zhejiang, China
Production Capacity
50000
Product Description
Application:

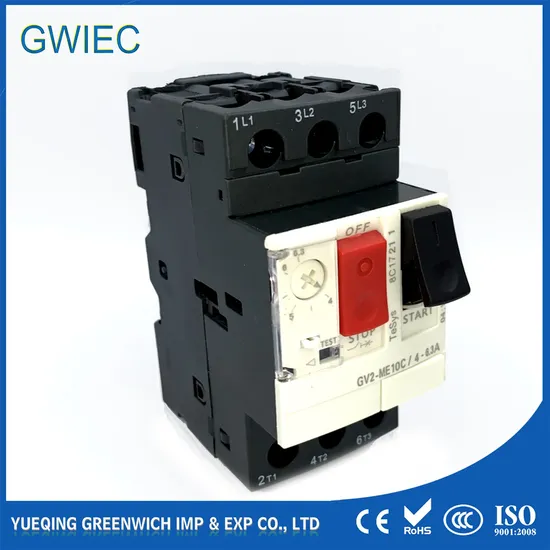

GV2/GV3 series motor protection circuit breaker (Motor Manual Starter) are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network. Specification:
Product name
| HOT SALE GV2 ME GV3 ME 3p 0.1A~80A Adjustable Motor Protection Switch Motor Manual Starter Circuit Breaker MPCB
|
Type
| Rated standard power of 3-phase motors 50/60HZ in category AC-3
| Setting
range(A)
|
220V
| 380V
| 415V
| 440V
| 500V
| 660V
|
KW
| KW
| KW
| KW
| KW
| KW
|
GV2-M01
| --
| --
| --
| --
| --
| --
| 0.1-0.16
|
GV2-M02
| --
| --
| --
| --
| --
| --
| 0.16-0.25
|
GV2-M03
| --
| --
| --
| --
| --
| --
| 0.25-0.4
|
GV2-M04
| --
| --
| --
| --
| --
| 0.37
| 0.4-0.63
|
GV2-M05
| --
| --
| --
| 0.37
| 0.37
| 0.55
| 0.63-1.0
|
GV2-M06
| --
| 0.37
| --
| 0.55
| 0.75
| 1.1
| 1.0-1.6
|
GV2-M07
| 0.37
| 0.75
| 0.75
| 1.1
| 1.1
| 1.5
| 1.6-2.5
|
GV2-M08
| 0.75
| 1.5
| 1.5
| 1.5
| 2.2
| 3
| 2.5-4.0
|
GV2-M10
| 1.1
| 2.2
| 2.2
| 3
| 3.7
| 4
| 4-6.3
|
GV2-M14
| 2.2
| 4
| 4
| 4
| 5.5
| 7.5
| 6.0-10.0
|
GV2-M16
| 3
| 5.5
| 5.5
| 7.5
| 7.5
| 9
| 9.0-14.0
|
GV2-M20
| 4
| 7.5
| 9
| 9
| 9
| 11
| 13.0-18.0
|
GV2-M21
| 5.5
| 11
| 11
| 11
| 11
| 15
| 17.0-23.0
|
GV2-M22
| 5.5
| 11
| 11
| 11
| 15
| 18.5
| 20.0-25.0
|
GV2-M32
| 7.5
| 15
| 15
| 15
| 18.5
| 26
| 24.0-32.0
|
GV3-M06
| --
| 0.37
| --
| 0.55
| 0.75
| 1.1
| 1.0-1.6
|
GV3-M07
| 0.37
| 0.75
| 1.1
| 1.1
| 1.1
| 1.5
| 1.6-2.5
|
GV3-M08
| 0.75
| 1.5
| 1.5
| 1.5
| 2.2
| 3
| 2.5-4.0
|
GV3-M10
| 1.1
| 2.2
| 2.2
| 3
| 3.7
| 4
| 4.0-6.0
|
GV3-M14
| 2.2
| 4
| 4
| 4
| 5.5
| 7.5
| 6.0-10.0
|
GV3-M20
| 4
| 7.5
| 7.5
| 7.5
| 10
| 11
| 10.0-16.0
|
GV3-M25
| 5.5
| 11
| 11
| 11
| 15
| 18.5
| 16.0-25.0
|
GV3-M40
| 11
| 18.5
| 22
| 22
| 25
| 33
| 25.0-40.0
|
GV3-M63
| 15
| 30
| 33
| 33
| 40
| 55
| 40.0-63.0
|
GV3-M80
| 22
| 40
| 45
| 45
| 55
| 63
| 56.0-80.0
|
FAQ: 1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
