Plastic Scrap Crusher Waste PP Pallet Recycling Plastic Pulverizer Crushing Machine

Product Description

WHC series of heavy-duty crusher Application:
WHC series heavy-duty crusher is widely used, customized spindle rotor
basis on the customer's material.Reliable performance, high capacity. Unique the crushing room structure and feeding hopper type,it can crush the large appliances shell,car bumper,rubber thick-walled plastic products into small particles.Also can be used as a core crusher for a variety of renewable recycling production line. Such as matching the shredding machine it will pack the material after shredded for the next step refinement, with washing granulation line to meet customer demand for high-capacity recycling.

Product Description
The shape of the knief-axis is eight character about one's bith. It has a large smashing force for hollow thin-walled plastic products. The installment model of the cutter blade is back to back. So it has a large cutting force.
Sphere of application: It has a good crushing effort for various hollow thin-walled bottles, thin film, woven bags, nylon and other plastic products. Automatic feeding device and automatic delivery filling system can be additionally mouted, which make the production efficiency high.

Model	WHC800/600
Main Shaft Length(mm)	800
Tactical Diameter(mm)	600
Speed(rpm)	520
Rotor Blades(pcs)	2x5/2x7
Fixed Blades(pcs)	4
Motor Power(kw)	55
Hydraulic Power(kw)	1.5
Screen Mesh Diameter(mm)	10-50
Inlet Size(mm)	705x800
Overall Dimension (mm)	2100x1750x3200
Weight(kg)	3500

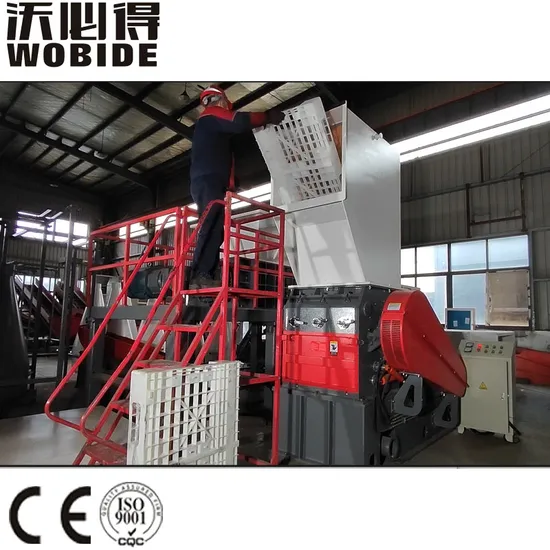

Detailed Photos
Application
Application:
Large household appliances shells/ inner container
Automobile bumpers
Plastic pallet
Hollow plastic containers
Injection product
PE, PP, PVC, PET, RUBBER, ABS, PC Crusher Product Series

Model	WHC600/350	WHC600/450	WHC800/450	WHC800/600	WHC1000/600	WHC1200/600	WHC1400/800	WHC1600/800
Main Shaft Length(mm)	600	600	800	800	1000	1200	1400	1600
Main Shaft Tactical Diameter(mm)	350	450	450	600	600	600	800	800
Main Shaft Speed(rpm)	580	580	580	520	520	520	520	520
Rotor Blades(PCS)	2x3	2x3	2x3	2x5/2x7	2x5/2x7	2x5/2x7	2x5/2x7	2x5/2x7
Fixed Blades(PCS)	2	2	4	4	4	4	4	4
Power(KW)	22	30	37	55	55/75	75/90	132/160	160
Hydraulic Power(KW)	/	1.1	1.5	1.5	1.5	1.5	3	3
Screen Mesh Diameter(mm)	10-50	10-50	10-50	10-50	10-50	10-50	10-50	10-50
Inlet Size(mm)	450x600	530x600	530x800	705x800	800x1000	850x1200	1400x1400	1600x1600
Dimension(L*W*H)(mm)	1650x1370x1950	2000x1550x2550	2000x1750x3150	2100x1750x3200	2300x1950x3350	2300x2150x3350	3500x2500x5000	3860x2650x5380
Weight(kg)	1800	2600	3100	3500	4500	5500	10000	12000

More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
