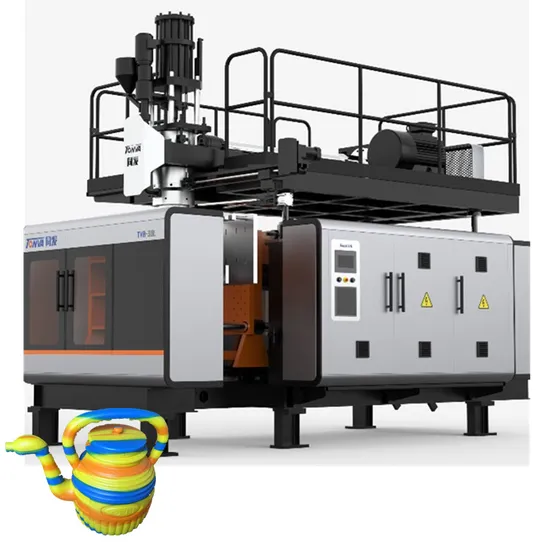

Double Color Pot Kettle Famous Producing Blowing Machine

Product Description

Double stations One cavity(20L) double layer Automatic trimming: Neck/Bottom Output: around 100 BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.8m³/min (1.2 m³/min Air compressor)

1	Unit	TVA-20L
Raw Material	PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc
Machine Weight	T	8.5
Machine (L*W*H)	m	4.2x2.2x3
Extrusion System
Diameter of Screw	mm	90
Screw L/D ratio	L/D	25:1
Plasticizing Capacity	Kg/h	160
Heating Zones	pcs	4
Heating Power	kw	18
Screw Motor	kw	18.5
Die Head
Heating Zones	pcs	4
Heating Power	kw	10
Power Consumption
Air Pressure	Mpa	0.6-0.8
Air Consumption	m3/min	0.6
Cooling water	l/min	60
Oil pump power	kw	15
Total Power	kw	61.5
Clamping System
Clamping Distance	m	350-850
Sliding Distance	mm	650
Open Stroke	mm	350-850
Mould Platen Size	mm	800x800
Clamping Force	kn	200
Working Condition
Piston Type Air Compressor	kw	15
Water Chiller	HP	8

Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.


Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.

---
