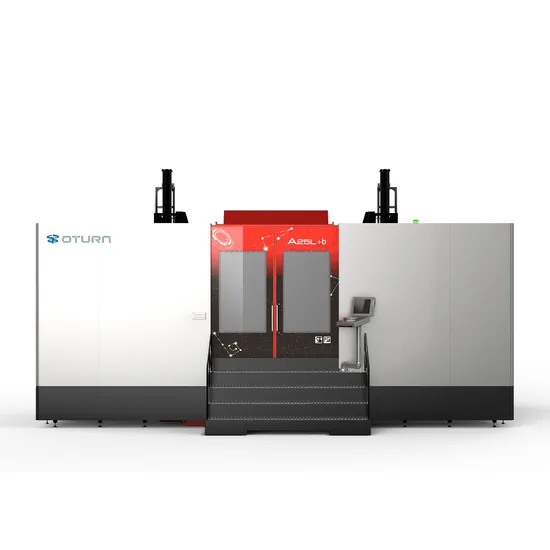

Heavy Duty High Precision 5-Axis Simultaneous Milling Center Hmc A25L+B Taiwan Vmc 5-Axis Horizontal CNC Machine Machining Center

Product Description

Product Description
The 5-axis Horizontal Cradle Machine Center A Series developed by Company has the characteristics of high rigidity, high precision and high efficiency processing.
Adopting the self-developed HSK E40/HSK A63/HSK A100 built-in spindle. Within the range of spindle rotation, eliminate jumping and vibration, and achieve stable accuracy in high-speed and long-term processing. The spindle uses forced cooling to cool the motor and front and rear bearings.

1. The whole machine adopts a moving column structure, with the tool moving three axes and the workpiece rotating two axes, which can achieve five axis linkage;
2. Lightweight design, linear axis 90M/min rapid displacement, acceleration 0.8G
3. Both A-axis and B-axis adopt a direct drive structure, with zero transmission chain, zero reverse clearance, and good rigidity; High precision angle encoding
Implement precise positioning.
4. T-shaped layout of the bed, X-axis stepped guide rail layout, light moving parts, and good stress condition;
5. The spindle adopts a high-speed electric spindle, which has fast speed and low noise;
6. Three linear axis roller guide rail, low friction, high rigidity
Product Parameters

Item		Unit	A25L+b
Travel	X/Y/Z axis travel	mm	2500/1500/1000
	Distance from spindle center to A-axis rotation center (Y)	mm	\
	Distance from spindle end face to A-axis rotation center (Z)	mm	\
	The distance between the B-axis disk surface and the A-axis rotation center	mm	\
	Distance from spindle center to workbench (Y)	mm	200-1700
	Distance from spindle end face to B-axis rotation center (Z)	mm	200-1200
	Maximum rotation diameter of B-axis	mm	2000
	Maximum rotation diameter of A-axis	mm	\
Spindle	Main spindle specifications (installation diameter/transmission method)	mm	210/built-in
	Spindle taper hole	mm	A100
	Maximum spindle speed	r/min	8000
	Rated power of spindle motor	kW	31.4
	Rated torque of spindle	N.m	150
Three aixs	X/Y/Z axis rapid displacement	m/min	120/120/120
	Axial acceleration	m/S²	10/10/10
	positioning accuracy	mm	0.015/0.01/0.008
	Repetitive positioning accuracy	mm	0.008/0.008/0.006
Five axis head	B-axis travel (five axis head)	o	\
	C-axis travel (five axis head)		\
	Maximum speed of B-axis (five axis head)	rpm	\
	Maximum speed of C-axis (five axis head)	rpm	\
	Five axis head positioning accuracy B/C	arc.sec	\
	Five axis head repetitive positioning accuracy	arc.sec	\
Turntable	Disc diameter	mm	2500*2500
	Allow load	kg	2500
	A-axis travel	o	\
	B-axis travel		360°
	Maximum speed of A-axis	rpm	\
	Maximum speed of B-axis	rpm	25
	A positioning accuracy/repeated positioning accuracy	arc.sec	\
	B positioning accuracy/repeated positioning accuracy	arc.sec	8/4
Tool Magazine	Tool magazine capacity	T	72
	Tool exchange time (T-T)	S	5
	Maximum tool diameter (full/empty)	mm	110/300
	Maximum tool length	mm	470
	Maximum tool weight	kg	20
Other	Machine Weight	T	50
	Machine Size	MM	10040*8226*5677

Products Configurations

Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
