4-8mm High Quality Wire Straightening and Cutting Machine for Low Carbon Wire

Product Description

Product Description
The 4-8 type CNC straightening machine has a rotating brake pay-off disc, which can stop wire feeding synchronously with the host through PLC control, making the wire pay-off more stable; it adopts a variable frequency motor to feed wire, and the wire feeding gearbox provides stable wire feeding; the variable frequency motor straightens the speed The speed is adjustable, the straightening roller adopts 5-mode straightening, the wire is easier to straighten; the servo shearing makes the shearing more stable and accurate.
Product Parameters

wire diameter	4.0-8.0mm	wire type	electric galvanized wire/hot dipped wire/black wire
Speed	Max. 90-120m/Min	press wire type	machine
Tolerance	1mm/m	power	19.5Kw(servo power 4.3KW,MAIN Motor power 15kw)
cut length	0.5-3/6/9/12m	power Voltage	220V/380V/415V/440V
cross wire feed	in coil	press wire type	Cylinder press wire

1. Host part:

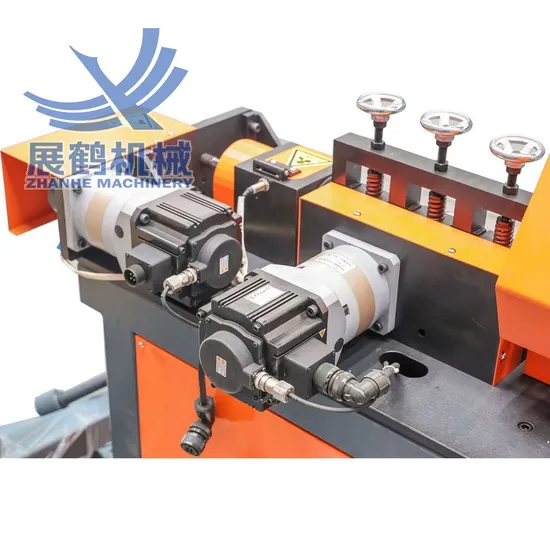

It adopts servo motor shearing, double conveyor boxes for wire feeding, and 5-hole high-speed straightening barrel to make steel bar straightening easier.
2.Electronic control part:
Adopt Delta PLC control, stable and reliable performance
3. Blanking part:
The whole steel plate is laser cut, the blanking frame is stable, and the material capacity is large. The steel bar pushing device can be equipped according to the user's needs. The cut steel bars are neat and easy to use in the next process (welding).
4. Circle pay-off stand:
Pneumatic brake pay-off reels and electric pay-off reels can be provided according to user needs.
The pneumatic brake pay-off disk is linked to the host machine, and the main machine stops working, and the pneumatic brake device starts, immediately stopping the rotation of the pay-off turntable; the electric pay-off disk is linked to the host machine, and the PLC controls the pay-off speed. The host stops working, and the pay-off motor is powered off. The reel stops rotating instantly, making production safer and more reliable

5. Cage protection device:
Rebar transportation during straightening is safer.
Packaging & Shipping
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
FAQ
Q: Are you a manufacturer?
A:Yes, we have been in providing the professional products in wire mesh field many years
Q:Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!

Q: Can your company send engineers to our country to install machines and train workers?
A: Yes, our engineers have been to many countries and have rich experience.

Q: How long is the warranty period of your machines?
A: Our warranty period is one year after the machine is installed in your factory.

Q: Can you export and provide the customs clearance documents we need?
A: We are experienced in exporting. And we can provide CE certificate, Form E, passport, SGS report, etc., your customs clearance will not be a problem.

---
