Basic Info.
Blade Material
Stainless Steel
Computerized
Computerized
Cutting Apply
Customized Cutting Machine for Shading Film
Material Thickness
0.05mm-15mm
Transport Package
Wodden Case
Origin
Kunshan, Jiangsu, China.
Production Capacity
50 Sets/Month
Product Description

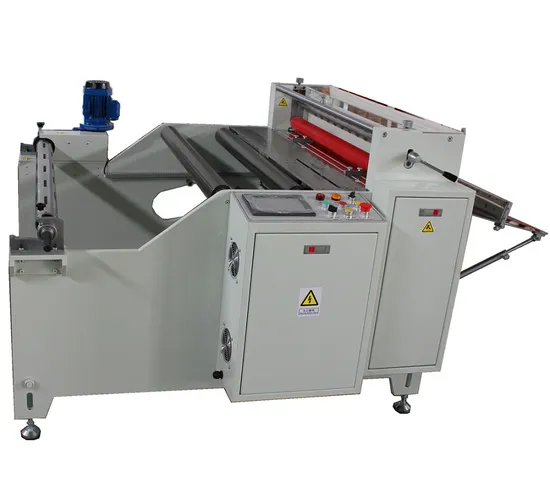

PLC controlled Automatic paper roll to sheet cutting machine
The Sheet cutting machine can be customized, max feeding width range is from 360mm to 1500mm.
FUNCTIONAL CHARACTERSTICS
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision
Purpose
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape,
Electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Automatic paper roll to sheet cutting machine technical parameter:
Model: DP-1000 Max Feeding Width ( mm ): 1000 Main Engineer Power ( w ): 3000 Speed ( t/m ): 110 Size ( mm ): 2000*1220*1270 Weight ( kg ): 350 Precision ( mm ): ± 0.05mm Power: 380V 50Hz |
| Touch Screen | KUNLUN | Made in China |
| Programmable Controller | MITSUBISHI | Made in Japan |
| Servo Driver | DELTA | TAIWAN,CHINA |
| Servo Motor | DELTA | TAIWAN,CHINA |
| Motor of cutting knife | TPG | Made in Japan |
| AC Contactor | RENMIN | Made in China |
| Solid State Relay 20A | Guguang | Made in China |
| Electric eye | Panasonnic | Made in Japan |
Characteristics:
1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 10 years
Application:
Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET, PC, PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory.
>>
