Hot Sale 168mm 219mm 273mm and 323mm Spiral Screw Conveyor Price

Product Description

Product Description A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat, bone meal, municipal solid waste, and many others. The first type of screw conveyor was the Archimedes' screw, used since ancient times to pump irrigation water.
They usually consist of a trough or tube containing either a spiral blade coiled around a shaft, driven at one end and held at the other, or a "shaftless spiral", driven at one end and free at the other. The rate of volume transfer is proportional to the rotation rate of the shaft. In industrial control applications, the device is often used as a variable rate feeder by varying the rotation rate of the shaft to deliver a measured rate or quantity of material into a process.
Screw conveyors can be operated with the flow of material inclined upward. When space allows, this is a very economical method of elevating and conveying. As the angle of inclination increases, the capacity of a given unit rapidly decreases.
The rotating part of the conveyor is sometimes called simply an auger.
Screw conveyor is mainly used to deliver dry powder materials, such as cement, fly ash, ore powder etc.
As a supplier of screw conveyor, we have 168mm, 219mm, 273mm and 323mm screw conveyor, the length can be 2m to 15m.
Product Parameters

Model	Delivery angle	delivery distance	delivery capacity	delivery pipe diameter	Motor power
LSY168	0-450	2-15m	24t/h	168mm	3-11.5kw
LSY219	0-450	2-15m	40t/h	219mm	5.5-15kw
LSY273	0-450	2-15m	80t/h	273mm	7.5-18.5kw
LSY323	0-450	2-15m	110t/h	323mm	15-30kw

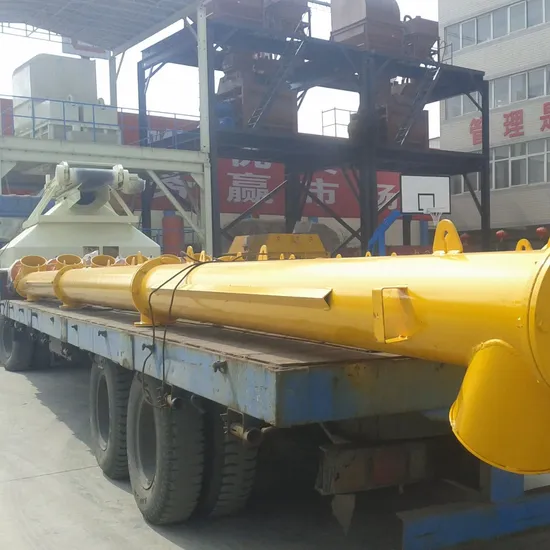

3. Pictures of our screw conveyor

---
