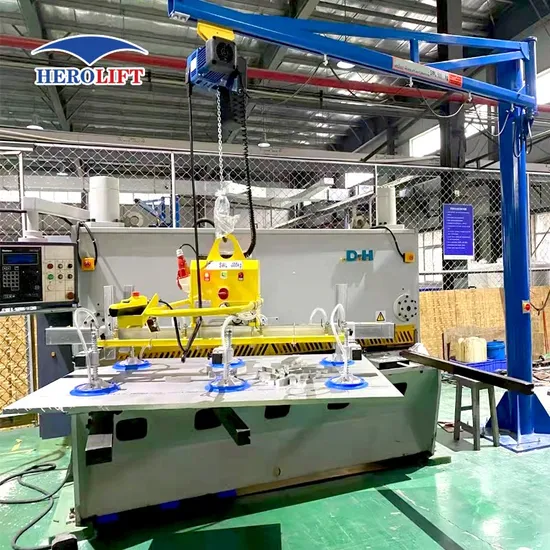

High-Performance Suction Crane for Steel Plate Lifting Solutions Vacuum Lifter

Product Description

Product Description
Our innovative vacuum lifter for laser feeding! This cutting-edge equipment is specifically designed to provide superior handling of sheets with dense, smooth or structured surfaces to meet the demands of the laser cutting process.
The lift is simple to operate, ensuring ease of use and efficiency in your daily operations. Plus, our primary focus on safety ensures your employees can perform their missions with peace of mind.

The adaptability of our equipment allows it to be modified quickly and easily to accommodate different workpiece sizes. This feature, combined with its high load capacity, makes our vacuum lifters the ideal partner for simplifying and rationalizing manufacturing processes. By optimizing your material handling operations, you can save valuable time and resources.
The device of our equipment,can choose DC or AC 380V.If you choose to charge the battery,you can use it for about 70 hours per charge.The battery life is more than 4 years.The normal power supply voltage of the equipment is 110V-220V.If you choose 380AC,because the voltage is different in each country or region,you need to know your local voltage when you purchase,we will provide the corresponding transformer according to the voltage in your country region.
Almost everything can be lifted
With custom-made tools we can solve your specific needs. Please contact us for more information
Characteristic
1,Max.SWL1500KG
Low pressure warning
Adjustable suction cup
Remote control
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010
Designed according to German UVV18 standard
2, Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.
3,A single person can thus quickly move up to 1 tonnes, multiplying productivity by a factor of ten.
4,It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.
5,It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.
Paramenters

Serial No.	BLA400-6-T	Max capacity	Horizontal handling 400kg
Overall Dimension	2160X960mmX910mm	Power input	AC220V
Control mode	Manual push and pull rod control absorption	Suction and discharge time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree(about0.85Kgf)	Alarm pressure	60%vacuum degree (about0.6Kgf)
Safety factor	S>2.0;Horizontal absorption	Dead weight of equipment	95kg(approximate)
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Power control box •Control the vacuum pump •Displays the vacuum •Pressure alarm
Vacuum gauge •Clear display •Color indicator •High-precision measurement •Provide security	Quality Raw Materials •excellent workmanship •long life •High quality

Specification

SWL/KG	Type	L×W×H mm	Own Weight kg
250	BLA250-4-T	2160×960×910	80
400	BLA400-6-T	2160×960×910	95
500	BLA500-6-T	2160×960×910	95
800	BLA800-8-T	3000×800×600	110
1500	BLA1500-12-T	3000×800×600	140
Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
For optional DC OR AC Motor drive as your requirements

Detail display

1	Supporting Feet	9	Vacuum Pump
2	Vacuum Hose	10	Beam
3	Power connecter	11	Main Beam
4	Power light	12	Remove Control Tray
5	Vacuum Gauge	13	Push-Pull Valve
6	Lifting ear	14	Shunt
7	Buzzer	15	Ball Valve
8	Power Switch	16	Suction Pads

Function
Safety tank integrated;
Adjustable suction cup;
Suitable for occasions with large size changes
Imported oil-free vacuum pump and valve
Efficient, safe, fast and labor-saving
Pressure detection ensure safety
The suction cup position be closed manually
Application
This equipment is widely used for laser feeding.
Aluminum Boards
Steel Boards
Plastic Boards
Glass Boards
Stone Slabs
Laminated chipboards
Metal processing industry

Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.

---
