Wear-Resistant Ceramic Hose Pipes to Handle Highly Abrasive Materials

Product Description

Product Description
High-quality wear-resistant ceramics are vulcanized inside the hose using an advanced vulcanization process. Multi-layer high-strength cords ensure that the pipeline has good compression resistance. It is not only very abrasion resistant, but also retains the soft characteristics of rubber tubes, and is generally used to isolate mechanical vibration or connect non-fixed equipmentuids
Widely used in thermal power plants, cement plants, ore dressing plants, anti-corrosion chemicals, coal powder and slurry conveying systems, and also used in port and river dredging sand suction vessels, concrete pump trucks, etc.

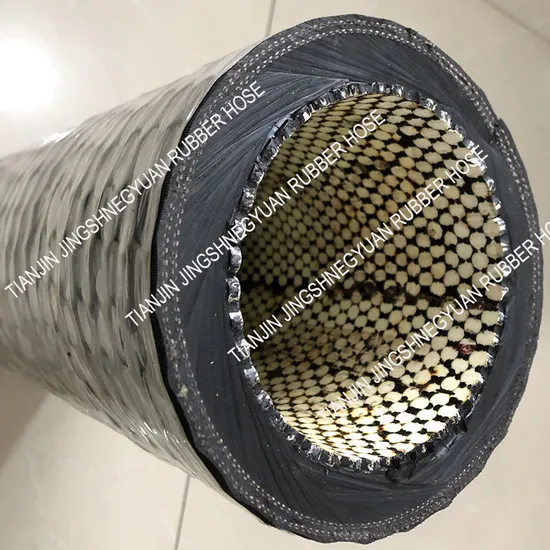

Detailed Photos


Product Parameters
SpecificationsHose Structure:Inner rubber layer: NR/SBR + Ceramic sheetReinforcement: high-strength synthetic cord with steel wire helixOuter rubber layer: NR / SBR / BRWorking temperature : -20ºC to +100ºCMaterial: Alumina CeramicColor: white Color: white Ai2O3:≥92%/95%/95%/ZTA Mohs Hardness: 9HV hardness:980/1040/1100/1250MPaBending Strength:260/280/320/350MPa Compressive Strength: 1150/1200/1250/1300MPa Jet impingement abrasion:<0.47/0.42/0.28/0.1cm3 Character:impact resistant ceramic

SIZE		OD	WP		BP		Weight	Length
mm	inch	mm	psi	bar	psi	bar	kg/m	m
25	1"	47	150	10	450	30	1.9	20
32	1 1/4"	55	150	10	450	30	2.5	20
38	1 1/2"	62	150	10	450	30	3	20
51	2"	78	150	10	450	30	4.4	20
64	2 1/2"	91	150	10	450	30	5.3	20
76	3	106	150	10	450	30	6.7	20
102	4"	133	150	10	450	30	9.2	12
152	6"	186	150	10	450	30	12.9	12
200	8"	236	150	10	450	30	17.6	12

NOTE: All The Sizes Of Industrial rubber Hose Can Be Customized As Your Requirments

Packaging & Shipping

Company Profile
Tianjin JingShengYuan Rubber and Plastic Products Co., Ltd is a manufacturer and exporter, which is located in Tianjin high-tech industry Garden, As expert in the filed of hoses over 15 years, with rich experiences, we serve a wide of range industries incuding offshore engineering, oil industry, tunneling, water treatment,chemical, mining and quarrying, aerospace, shipbuilding, food, drink and pharmaceutical, brewing, machine manufacturing, agriculture and garden. Our main products: Dredging Hose, Floating Hose, Marine LPG Hose, Marine Oil Delivery Hose, Oil Suction & Discharge Hose, chemical hose,Tank Truck Hose, Cement Hose, Sand Blast Hose, Air/Water Hose.
We serve both domestic as well as overseas companies, you can count on us to deliver high quality products, solid advice and fast and reliable service at a reasonable price.
Our Advantages
1.Professional manufacturing factory
2.Good quality&service control system, produced by skilled workers
3.Designing and researching hose assemblies according to customers'requirements
4.Timely and effective delivery
5.Flexible payment method.
Application
Widely used in thermal power plants, cement plants, ore dressing plants, anti-corrosion chemicals, coal powder and slurry conveying systems, and also used in port and river dredging sand suction vessels, concrete pump trucks, etc.FAQ
Q1. What's the advantages of your rubber hoses?
Our rubberhose have been certified by API and ISO quality management system. With over 10 years' exporting experience, our products have got a good reputation of "good quality and reasonable price",sells far to Europe, America, Singapore, India, Middle East, Myanmar.
Q2. Can you produce rubber hoses with my own brand?
Yes, we have been offering OEM services since the beginning of our factory was built, so we got rich experience in this service.
Q3: How about your products quality?
Our every rubber hose is under a rigorous prosess and test for every step
Q4. How long does my order take to be delivered?
Big orders by sea usually takes 30 days, if your requested quantity is not very big, within 10 days can get any corner of the world with air freight. So it generally depends on the quantity of your order and our storage.
Q5. What about your production capicity?
We are OEM factory,we have more than 30 produtional lines and top class equipments and machines to assure our bulk quantity production,usually we can supply 300000meters within one month.

---
