Good Price Da53t 4+1 Axes Hydraulic CNC Press Brake Bending Machine

Product Description

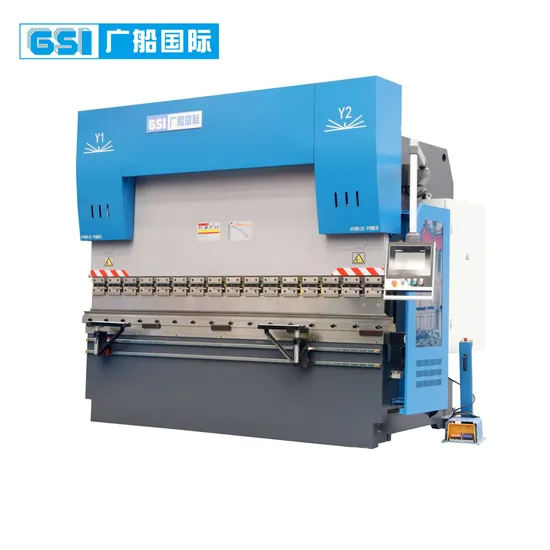

Product Description WH100/2500 Hydraulic CNC Press Brake
1. Adopt oil-electric hybrid technology to achieve high efficiency, energy saving, environmental protection and low noise of the machine.
2. Supply oil on demand, reduce overflow, effectively reduce oil temperature, and extend the service life of hydraulic system and components.
3. Electro-hydraulic servo valve system, full closed-loop control slider synchronization, accuracy 0.01mm.
4. The whole machine adopts all steel plate welding structure.
5. Use CNC system to control the hydraulic deflection compensation device.
6. The rear stop is equipped with high-performance servo motor and ball screw.
7. The upper slider is equipped with a wedge type deflection compensation mechanism.
8. You can choose the square multi-V die or the same core double V die.
DETAILED IMAGE
Quick Clamp
The standard equipped fast clamp will help you replace the top punch in very short time. Convenient and time-saving. Fast intermediate loading and unloading function to improve work efficiency. Front Supportor With Linear Guide Rail
Installed on the front of the workbench and moving along the linear guide rail. It can be arked at any position,with rotation and height adjustment functions to help you to bend.
Electrical Cabinet
1. The electrical components mainly adopt the French brand, which meets international standards, is safe and reliable, and has strong anti-interference ability.
2. The wiring of the electrical cabinet is reasonable and clear, easy to repair or troubleshoot, and has good heat dissipation effect. Main Servo Motor
The main motor adopts servo motor, which has small pressure leakage loss during standby and pressure maintaining, significant energy-saving effect, indirect carbon emission reduction, environmental protection and efficiency; The reduction of oil volume reduces the disposal of waste hydraulic oil; Low noise, improving the working environment of operators. HIWIN Ball Screw
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working.
OPKON Magnetic Railing Ruler
A magnetic grating ruler imported from Germany is installed on the C-shaped plates on both sides of the rack to detect and feed back the synchronous movement status of the two oil cylinders to control the stroke position of the sliding block.
CNC control system DA53T (Standard)
CNC System (Optional)
Main Technical Parameters of WH Series Hydraulic CNC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Stroke (mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm)	Speed (mm/s)			Overall Dimension			Weight (kg)
										Approaching	Working	Return	L(mm)	W(mm)	H(mm)
1	WH40/1500	400	1500	1160	320	160	410	5.5	600	180	0~16	180	2300	1510	2535	4000
2	WH50/2000	500	2000	1500	320	160	410	5.5	600	180	0~16	180	2600	1560	2545	4500
3	WH63/2500	630	2500	2000	320	160	450	7.5	600	180	0~16	180	3100	1550	2500	5500
4	WH80/2500	800	2500	2000	400	200	470	7.5	600	180	0~15	180	3100	1650	2550	6000
5	WH100/2500	1000	2500	2000	400	250	475	11	600	180	0~15	180	3100	1650	2565	6500
6	WH100/3200	1000	3200	2700	400	250	475	11	600	180	0~15	180	3800	1710	2565	8300
7	WH100/4000	1000	4000	3500	400	250	475	11	600	180	0~15	180	4600	1710	2565	9200
8	WH125/2500	1250	2500	2000	400	250	475	15	600	160	0~14	160	3100	1700	2600	8000
9	WH125/3200	1250	3200	2700	400	250	475	15	600	160	0~14	160	3800	1745	2630	8700
10	WH125/4000	1250	4000	3500	400	250	475	15	600	160	0~14	160	4600	1745	2630	10300
11	WH160/3200	1600	3200	2700	400	250	475	15	600	160	0~13	160	3800	1755	675	9600
12	WH160/4000	1600	4000	3500	400	250	475	15	600	160	0~13	160	4600	1755	2675	11400
13	WH160/5000	1600	5000	4100	400	250	475	15	600	160	0~13	160	5600	1780	3075	15000
14	WH160/6000	1600	6000	5100	400	250	475	15	600	160	0~13	160	6600	1800	3075	18000
15	WH200/3200	2000	3200	2700	400	250	475	18.5	600	150	0~12	150	3800	1935	2895	11500
16	WH200/4000	2000	4000	3300	400	250	475	18.5	600	150	0~12	150	4600	1935	2895	13600
17	WH200/5000	2000	5000	4100	400	250	475	18.5	600	150	0~12	150	5600	1935	3100	16000
18	WH200/6000	2000	6000	5100	400	250	475	18.5	600	150	0~12	150	6600	1935	3200	21000
19	WH250/3200	2500	3200	2700	400	250	550	18.5	600	135	0~10	135	3800	1900	3100	14500
20	WH250/4000	2500	4000	3300	400	250	550	18.5	600	135	0~10	135	4600	1900	3200	16000
21	WH250/5000	2500	5000	4100	400	250	550	18.5	600	135	0~10	135	5600	1900	3350	17500
22	WH250/6000	2500	6000	5100	400	250	550	18.5	600	135	0~10	135	6600	1900	3500	21000
23	WH320/3200	3200	3200	2700	400	300	600	25	600	100	0~10	100	3800	2100	3200	17500
24	WH320/4000	3200	4000	3300	400	300	600	25	600	100	0~10	100	4600	2100	3300	20000
25	WH320/5000	3200	5000	4100	400	300	600	25	600	100	0~10	100	5600	2100	3600	24500
26	WH320/6000	3200	6000	5100	400	300	600	25	600	100	0~10	100	6600	2200	3600	27000
27	WH400/3200	4000	3200	2700	400	300	620	25	600	80	0~10	80	3800	2500	3700	20000
28	WH400/4000	4000	4000	3200	400	300	620	25	600	80	0~10	80	4600	2500	3850	28000

View more products , pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html

Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ 1. Q: Are you a factory or a trading company? A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.2. Q: How to get a accurate quotation from you ? A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.3. Q: What's the payment terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment.4. Q: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )5. Q: Can you provide customized machine and tool? A: Yes,we can design and manufacture according to your specific requirements.6. Q: How do you guarantee your quality? A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.7. Q: Where is your factory located? How can I visit there? A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
