| US$28,336.00-37,565.00 | 1 Set (MOQ) |

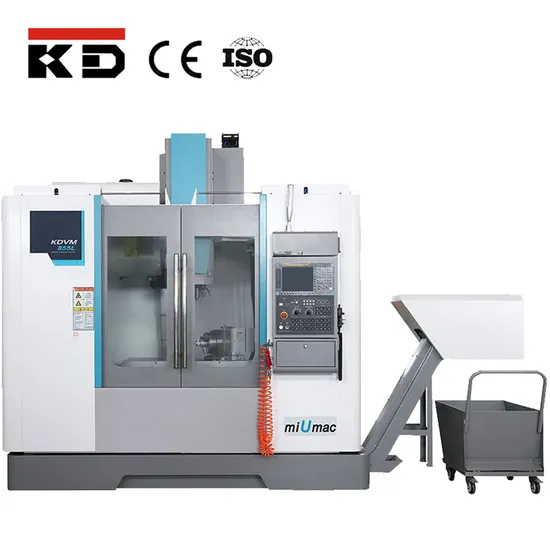

| MODELS | KDVM855L |
| TRAVEL | |
| X axis | 800mm |
| Y axis | 510mm |
| Z axis | 510mm |
| Spindle center to column | 595mm |
| Spindle end to table | 120-670mm |
| TABLE | |
| Tablesize | 1000×550mm |
| T-slot(width×number×space) | 18mm×5×90mm |
| Max.table loading | 600kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast feed | 48/ 48/ 36m/min |
| Torque axis motors | 11/ 11/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф78mm |
| Max. tool size (Without adjacent tool) | Ф120mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 1.8s |
| ACCURACY | |
| Positioning | ≤0.010 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Overall dimension (LxWxH) | 2800x2400x2700mm |
| Net weight | 5250kg |
