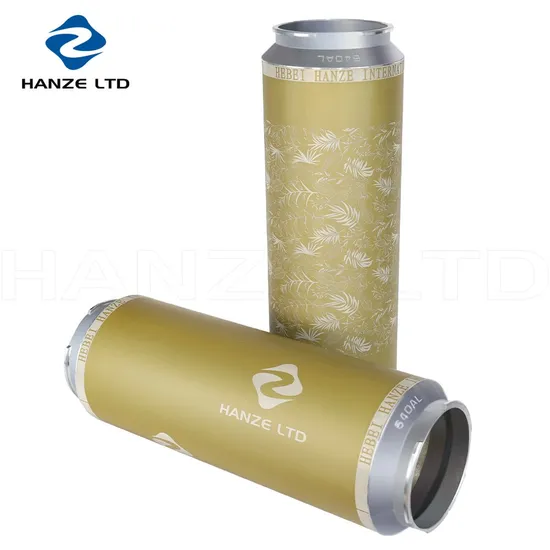

Cylinder Printed Nickel Mesh for Textile Spare Parts

Product Description

Hanze Ltd provide Rotary Nickel Screen mesh ranges as follow:
Mesh Count:25,30,40,50,60,70,80,100,125,135,155,165,up to 195 mesh count.
Screen Repeat:640,688,725,819/820,914,1018,1206,1450,1680mm
Length:1000 mm to 3500 mm.
which are of high quality and can replace the similar products as well from Europe.
All other specifications could be customized.

Standard Nickel Screen
Repeat(mm)	530/640/688/725/819/914/1018
Length(mm)	1410-3500
MESH COUNT	THICKNESS(um)	OPEN AREA(%)	DIAMETER(um)
25	160-165	30-32	720
40	145-150	28-30	318
60	115-120	18-20	161
70	110-115	16-18	131
80	110-155	16-18	105
100	105-115	15-17	74
105	105-115	15-17	94
125	100-105	14-16	79
125V	100-105	14-16	79
135	100-105	13-15	72
135V	100-105	13-15	72
155	100-105	12-13	60
165	100-105	12-13	71
All"V type screen, the hole arrangement angle is 45°C, especially suitable for geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times.

Wax Special Screen
Repeat(mm)	819/914
Length(mm)	1410-3500
Mesh Count	Thickness(um)	Open area(%)	*
60	145	24-26	*
80	120	18-20	*
100	125	15-17	*
125	120-180	15-25	*
155	120-150	15-22	*
165	120-150	15-20	*

Wallpapers Screen
Repeat(mm)	640/914
Length(mm)	1410-3500
Mesh Count	Thickness(um)	Open area(%)
40LR	125	20
6OLR	125	10.5
7OLR	125	12.5
25SP	150	50
40SP	150	38
80SP	150	25
100SP	150	20
125SP	150	15 ABOVE
40CH	150	22
40CH	200	38
50CH	200	20
50CH	200	23
30HX	300	30 ABOVE
40HX	300	30
60HX	160	10
SP Screen: Big open area and relatively less hole, especially suitable for decoration coating, dot printing CH Screen: Suitable for medium or thicker printing LR Screen: Closed drawing coating, light coating, artificial leather, wall paper and floor

GD Screen
Repeat(mm)	640
Length(mm)	1410-3500
Mesh Count	Thickness(um)	Open area(%)	Diameter(um)
135ED	120	22	88
165ED(45°)	115	19	67
165ED(60°)	115	19	67
195ED	115	16	52
195ED	115	19	54
215ED	110	15	46

High Open Area Screen
Repeat(mm)	640/819/914/1018
Length(mm)	1410-3500
Mesh Count	Thickness(um)	Open area(%)	Diameter(um)
125HO	115-120	17-18	/
155HO	105-110	13-14	/

Product advantage:
More tough and tensile, safely operation and multiple use
Good symmetrical, good conglutination function of photosensitive medicament
Orderliness and accurate screen caves, good dye output and osmotic function
Higher strength, longer life screen
Nickel screen for screen printing machine
Packaging Detail:packaged in plywood case or carton box
Delivery Detail:Within 10-15 days

---
