1 2 Core Outdoor Indoor FTTH LSZH Fiber Optical Drop Flat Optic Cable

US$0.035
100,000-999,999 Meters
US$0.032
1,000,000-9,999,999 Meters
US$0.03
10,000,000+ Meters

Basic Info.

Model NO.
GJYXFCH
Connection Structure
N/M
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core
Certification
ISO9001
Brand
OEM
Sheath Material
LSZH
Cable Color
Black
Messenger
Steel Wire
Cable Length
1km 2km 3km
Transport Package
Polywood Drum
Specification
2.0*5.0mm
Trademark
Changrong Tech
Origin
China
HS Code
8544700000
Production Capacity
120000km/Year

Packaging & Delivery

Package Size
32.00cm * 32.00cm * 26.00cm
Package Gross Weight
21.000kg

Product Description

Product Description
1 core 2 cores 1km 2km 3km Plywood Drum Self-supporting FTTH DROP CABLE SINGLE MODE G657A1 FIBER OPTIC CABLE

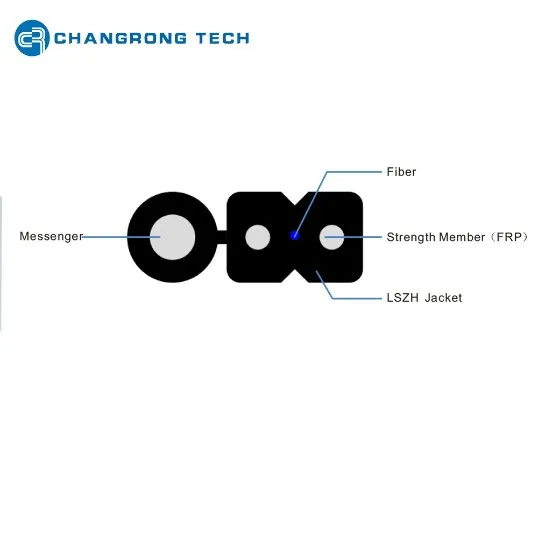

Structure:
Central optical fiber(s) with 2 parallel steel wires (or FRP) as the strength members placed on both sides
An additional strength member(steel wire or FRP).
Finally a LSZH jacket is extruded outside.
Product Parameters
Counts 1-4
Cable Diameter(mm) 2.0*5.0
Cable Weight (Kg/km) 18
Fiber Type G657
Tensile Strength(N) Long/Short Term:300/600
Crush Resistance(N/100mm) Long/Short Term:1000/2200
Bending Radius(mm) Static/Dynamic:G657:20D/40D
Temperature(ºC) Storage /Operation:-20ºC ~70ºC
