Hot Sale Jingwei Brand Qp-10 High Efficiency and Conveniency Automatic Yarn Package Baler

Product Description

Hot Sale Jingwei Brand Qp-10 High Efficiency and Conveniency Automatic Yarn Package Baler
24h Online Customer Service
Product Description

Qingdao Hongda Textile Machinery Co., Ltd (here after referred to as QDHD)is the subsidiary company ofJingwei Textile Machinery Co., Ltd. It is a large-scale backbone enterprise of textile machinery manufacture,as well as an important manufacturing base for carding machinery and auto-winder.
The Technology Center of QDHD is certified as the National Technology Center. Blowing-Cardingmachinery wins the First-Class Scientific and Technological Progress Award issued by China Textile IndustryAssociation and is the promotion program in The Ninth Five-Year Plan of the State Science and TechnologyCommission. The three leading products of QDHD-Carding Machine, Blowing-Carding Machine and Auto-winder, have all passed the ISO9001 quality system authentication, winning QDHD the honor of "PioneerEnterprise of National Quality Control".
Facing the new situation, Qingdao Hongda Textile Machinery Co., Ltd will be committed to continuouscontribution to the development of Chinese textile machinery, the technological progress of the Chinesetextile industry and the improvement of its international competitiveness by executing new initiatives andadvancing with times.
Application

Yarn package produced by auto-winder, open-end spinning, vortex spinning, twister and other equipment.
Main component units

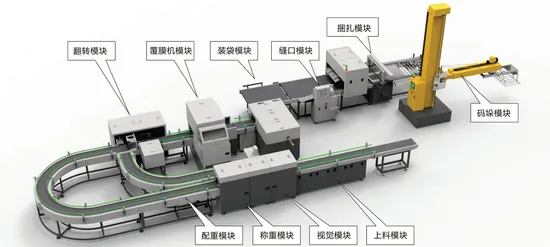

1. Feeding unit 2. Visual unit 3. Weighing unit 4. Counterweight unit 5. Overturn unit 6. Laminator unit 7. Bagging unit 8. Seam unit 9. Tying unit 10. Palletizing unit

Output up to 2000kg / h (12 yarn packages / bag) .
The varieties can be changed quickly in 3 ~ 5 minutes, to meet the requirements of users for multi-variety baling.
Humanized design for easy and convenient operation, the workers are able to operate after simple training.
Small area occupation and high configuration flexibility, this equipment is suitable for all spinning mills.
High efficient and maintenance-free palletizing machine .
High efficient and maintenance-free laminator machine saves the later cost.
It adopted the innovative circulating counterweight mechanism to save the time of all warehouse action. The yarn packages selected by the counterweight system can be sent to the next process according to the speed set in debugging, and the yarn packages which are not selected can be quickly pushed into the return conveyor.
This circulating counterweight system can feed a yarn package again in 1.2 seconds to efficiently complete the whole counterweight process and will never "die".
The dynamic yarn package overturn mechanism moves a step to the forward direction of the conveyor belt while realizing overturn. The pushing in and out action of yarn package is dynamically realized during the movement of the conveyor belt, which eliminates the yarn package wait during overturn, and realizes the continuous .
Different from the traditional cylinder-pushing mode, it adopts innovative application of belt feeding design with simpler and more reliable structure that realizes the continuous production without waiting in the whole laminating process to greatly improve the lamination efficiency up to 2 seconds / yarn package.

---
