China Manufacturer Large Drum Cement Mixer Machine Articulated 4WD Mixer Truck Cement Mixing Vehicle Self Loading Cement Concrete Mixer Hot Sale

Product Description

China manufacturer large drum cement mixer machine Articulated 4WD Mixer Truck Cement Mixing vehicle self loading cement concrete mixer hot sale
Main Specification:

Name	Item	Specification
Truck	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.6m3
		Control		Hydraulic
	Tilt angle	30%
	Speed	High		0-25KM/H
		Low		0-20KM/H
	Mini turning radius	6.5M/R
	Tyre model	16 /70-20
Engine	Type	Yuchai
	Rated Power/RPM	110KW/2200RPM 150HP
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	5.5M3
	Bank Angle	16 °
	Rotation Angle	19-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:90cm
Loader	Weighing model	computer control
	Accuracy	Concrete Standard			C15.C20.C25 C30
		Cement			≤±2%/time
		Relative Error			≤±3%/time
		water			≤±1%/time
		Additive			≤±1%/time
		Admixture			≤±2%/time
Loader control	Hydraulic 4 way stick
Hydraulic oil tank	240L
Water tank	550L
Over size	8200*2700*3400mm

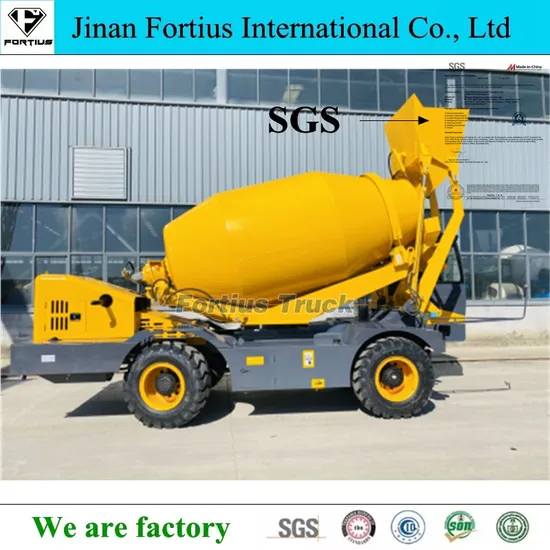

Detailed Photos
Features&Advantages
Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency
Capacity:22-27.5cubic meters per hour.
Labor-saving.
4 WD.
Accurate electric weighing system.
The mixing unit is hydraulic slewing 270 degree for high discharge over 1.8m to the four sides of the vehicle. Loading,weighing,pumping,mixing,delivering and discharge.
Ultimate tank capacity technology,can discharge with different angles
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
Loading capacity is larger for the same volume.
The center of gravity is low for the same loading capacity.
Swing tank easy discharge to different way.
High-strength wear-resistant application
Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.
Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.
New exterior styling
Overall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience.
ALEX:20 tons payload reduction axle with oil bath dis brakes and planetary
CHASSIS:Integrated rigid chassis for off-road operate.
Cabin:ROP&FOPS type closed front cab is suited one side of loading shovel,air conditioner,tilting from window and anatomic seat with flexible ergonomics are available
Adjustable seat, convenient and comfortable to use.
Joystick:All hydraulic functions of shovel controlled by a single joystic
Loading shovel:is fitted with teeth in front and competed with hydraulic opening gate and wit longer blade in side to tear cement bag
Working table controlled by microcomputer, water temperature, oil temperature, current are all insight Our companyAbout Fortius
JINAN FORTIUS INTERNATIONAL TRADING CO.,LTD which is located in the capital city of Shandong Province-Jinan,is a group company established by few 10-years working experienced experts for SINOTRUK trucks, trailers and spare parts. construction machine , new energy vehicles .
We have dealt with many projects in China and abroad, such as TANZANIA STRATEGIC CITIES PROJECT, Uganda CITIES Sewage engineering, Guinea city electric project, Brunei Port project, Fiji logging transportation, Philippines mining project and so on.
We have "heavy duty fans" from all over the world now, hope you may joint us, and let start a good and pleasant business
association together
Our Workshop
Packaging & Shipping1.Container: The cheapest and fast one ;put the machine into container need disassemble .
2.Flat rack: Often used to ship two wheel loader,max load-bearing is 35tons.
3.Bulk cargo ship: which is better for bigger construction equipment,no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
Related ProductsWe Supply Wheel Loader, Bulldozer,Demolition Machine, Pile Driver Machine, Backhoe Loader, Steel
grabbing machine, Telescopic handler, Forklift,Tractor, Digger Hydraulic, Mining Excavator, Selfloader,
Pay Loader, Truck, Parts, road construction machinery
FAQ.
Q1.What is your terms of payment?A:T/T 30% as deposit.and 70% before delivery.We'll show you the photos of the products and packagesbefore you pay the balance.Q2.What's your minimum quality?A:1 unitQ3.How about your delivery time?A:Generally,it will take about 20 to 30 days after receiving your advance payment.The specific delivery timedepends on the items and the quantity ofyour orderQ4.What's the warranty?A:Enainetransmission.axle quarantee one vear(Any faulty caused by incorrect operation or man-madefactors is exclusive ofquarantee.)Q5.What's your after-sale service?A:We provide technical support for ourtrucks and whole life parts supply

---
