Vmc855 3 Axis / 4 Axis Vertical Machining Center

Product Description

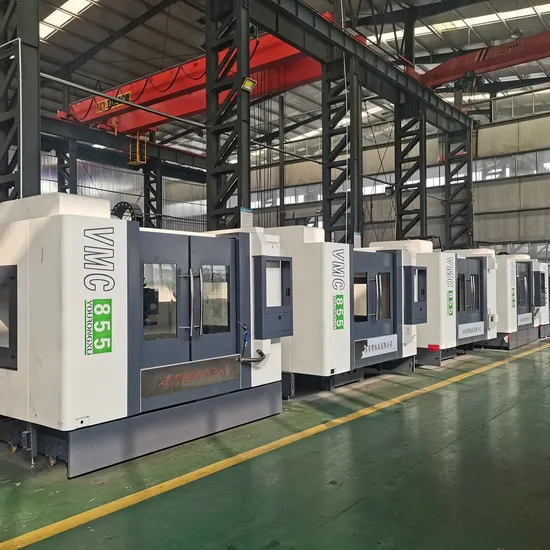

VMC855 3 axis / 4 axis vertical machining center

Product Description
√ resin sand castings, after aging treatment, inside with mesh stiffeners, ensure good stability of structure
√ 3-axis roller linear guideways, Z-axis designed with six sliding blocks, high speed, high rigidity, low friction, low noise, long service life
√ 3-axis large pitch ball screws, pre-drawing treatment, good rigidity, good accuracy, high speed
√ direct connection structure between servo motors and ball screws, ensures positioning accuracy

√ Taiwan brand spindle unit, P4 spindle bearings, high speed, high rigidity, good accuracy
√ mandatory automatic lubrication system for guideways and ball screws, ensures long service life
√ full protection guard, disc type tool magazine are standard

Main Parts Brand

Main Parts	Brand	Origin
Ball screw	HIWIN	Taiwan
Linear guideway	HIWIN / PMI	Taiwan
Bearing	NSK	Japan
Spindle	ROYAL	Taiwan
Electrical component	Schnider	French
Central lubrication	HERG	Japan
Tool magazine	Deta / Firdi	Taiwan

Product Parameters

Items	Unit	VMC1160	VMC855	VMC750
Working area
Table size	mm	1200x600	1000x550	900x500
Max. load of table	kg	800	500	400
T-slot (width x No. x pitch)		5/18/125	5/18/90	3/18/125
Distance from spindle nose to table	mm	120-720	120-670	120-620
Distance from spindle axis to column	mm	650	575	560
Table travel of X axis	mm	1100	800	700
Table travel of Y axis	mm	600	550	500
Headstock travel of Z axis	mm	600	550	500
Spindle
Spindle taper		BT40	BT40	BT40
Spindle diameter	mm	150	150	120
Spindle speed	rpm	8000	8000	8000
Main motor power	kw	11	7.5	5.5
Feed
Feed speed-X/Y/Z	mm/min	1-8000	1-8000	1-12000
Rapid speed-X axis	m/min	24	36	36/48
Rapid speed-Y axis	m/min	24	36	36/48
Rapid speed-Z axis	m/min	20	32	32
Tool magazine
Type		Disc 24T	Disc 24T	Disc 20T
Max tool diameter	mm	80/150,80/130	80/150,80/130	80/150,80/130
Max tool length	mm	300	300	300
Max tool weight	kg	6/7	6/7	6/7
Others
Positioning accuracy	mm	±0.005	±0.005	±0.005
Repeat positioning accuracy	mm	±0.003	±0.003	±0.003
Machine overall dimension (LxWxH)	mm	2900x2400x2800	2640x2180x2600	2640x2180x2450
Net weight	kg	7200	5400	4200

larger models

Items	Unit	VMC1275	VMC1580
Table size	mm	700*1300	800*1600
Table travel X,Y,Z	mm	1200,750,600	1500,800,700
Max table load	kg	1000	1500
Distance between spindle and table surface	mm	120-720	155-855
Spindle center to column surface	mm	775	855
Rapid feed speed X	m/min	24	24
Rapid feed speed Y	m/min	24	24
Rapid feed speed Z	m/min	20	20
Cutting feed rate	mm/min	1-10000	1-10000
T-slot (N/W/D)		18x7x100
Spindle speed range	rpm	8000	8000
Spindle taper	/	BT40 (φ150mm)	BT50 (φ155mm)
Spindle motor power	Kw	11/15	11/15
Magazine capacity	T	24	24
Tool magazine type		Disc type	Disc type
Max tool diameter	mm	Φ80-150/80-130	Φ105/200
Max tool length	mm	300	300
Max tool weight	kg	6/7	15
Positioning accuracy	mm	±0.005	±0.005
Repeatabiblity	mm	±0.003	±0.003
Overall size	mm	3050 X 2273 X 2400	3200X2540X2600
Net weight	kg	8500	17000

Certifications
Products are strictly according to European standard, with CE certificates.
Company Other Products
Company Profile
Shandong Xili Machine Tool Co., Ltd. is one of the leading manufacturers in Tengzhou city, Shandong province, China.
Company has more than 20 years milling machine production history, covers an area of about 50000m2, with 20 million CNY fixed assets and more than 200 employees.
Company has mainly 12 series products include hundreds of models: CNC gantry type machining center, Vertical machining center, Horizontal machining center, CNC lathe, Simple NC milling machine, conventional manual milling machines include Vertical milling machine, Horizontal milling machine, Universal swivel head milling machine, Sliding ram milling machine, Bed type milling machine, Tool milling machine, Gantry type milling machine etc.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Machines are sold all over the country and exported to many other countries include Germany, UK, French, Austria, Italy, Spain, Denmark, Poland, Romania, USA and some Middle East and Southeast Asia countries.
We provide quality products, reasonable prices, satisfactory service and timely delivery, welcome all customers from at home and abroad to visit our factory.

---
