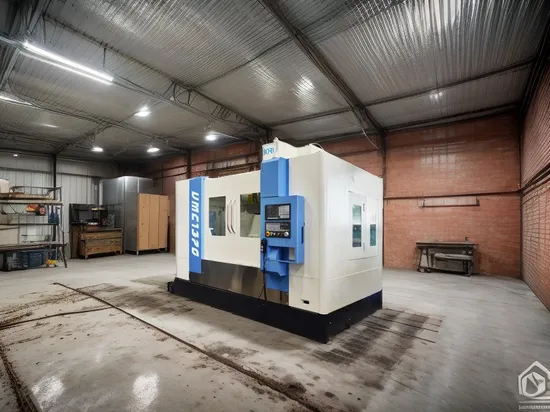

High-Speed Vmc1370 CNC Vertical Milling Machine for Precision Machining

Product Description

Vmc1370 cnc vertical vmc milling machine 5 axis 4 axis 3 axis for high speed machining
Product Description
Product main technical parameters:

Processing
X axis travel	mm	1300
Y axis travel	mm	700
Z axis travel	mm	700
Spindle nose to table surface	mm	BT40- ∮ 150:100-800;BT50- ∮ 155:70-770 BT50- ∮ 190:120-820
Spindle center to Column surface	mm	773
Worktable Size
Worktable Size(X-axis direction)	mm	1400
Worktable Size(Y-axis direction)	mm	700
T slot qty-width*distance	mm	18x5x110
Spindle specification
Spindle speed(Belt type)	rpm	8000
Main motor power	kW	11/15
Spindle taper		BT40(BT50)
Feeding system
X/Y/Z axis rapid feed	m/min	24/24/24
Cutting rapid feed	mm/min	1-10000
Three-axis servo motor power	kW	3 X 3 X 3.5
Tool library system(OPT)
Tools capacity	pcs	Disc Type 24
Machine size
Machine length	mm	3200
Machine width	mm	2540
Machine high	mm	2600
Machine weigth	kg	8800

Detailed Photos

Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
