US$1,060.00-1,190.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
MS-H340-S4 digital magnetic stirrer
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Work Plate Dimension
135mm(5 Inch)
Work Plate Material
Stainless Steel with Ceramic Coating
Motor Type
Brushless DC Motor
Motor Rating Input
1.8W X 4
Max. Stirring Quantity[H2O]
10L
Max. Magnetic Bar[Length]
40mm
Heating Temperature Range
25-340 Degree
Over Temperature Protection
420 Degree
External Temperature Sensor
PT1000
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Production Capacity
30000PCS/Year
Product Description
Product Description

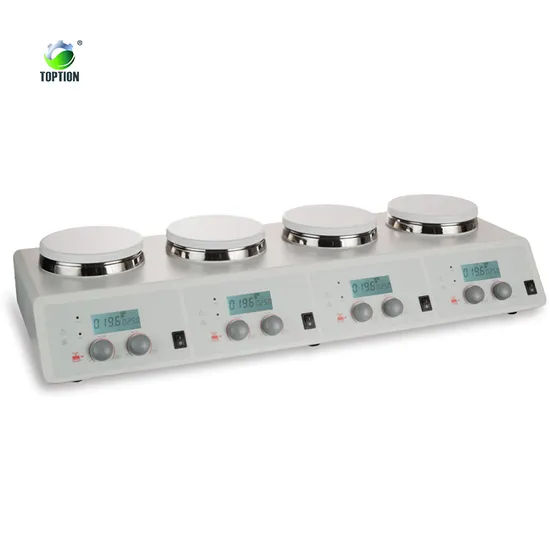

4-Channel LCD Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 340°C (MS-H340-S4)
It is widely used in chemical synthesis,physical and chemical analysis, bio-pharmaceuticals etc.
• Independent heating and stirring control
• LCD display shows actual temperatures and speed
• PID controller ensures a precise and steady heating process, Max.temperature up to 340ºC
• Brushless DC motor enables more powerful speed control
• External temperature sensor(PT1000) with accuracy at 0.2ºC
• Overheating protection temperature at 420ºC
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• A wide variety of accessories are available
Specifications
| MS-H340-S4
|
Work plate dimension
| Φ135mm(5inch)
|
Plate material
| Stainless steel with ceramic coating
|
Motor type
| Brushless DC motor
|
Motor rating input
| 1.8W×4
|
Power
| 515W×4
|
Heating Power
| 500W×4
|
Voltage
| 100-120V,60Hz; 200-240V,50 Hz
|
Stirring positions
| 4
|
Max. stirring quantity of single position (H2O)
| 10L
|
Max. magnetic bar
| 40mm
|
Speed range
| 200-1500rpm
|
Speed display
| LCD
|
Temperature display
| LCD
|
Control accuracy of sensor[rpm]
| ±20
|
Temperature range
| 25-340ºC
|
Over temperature protection
| 420°C
|
Temperature display accuracy
| ±0.1°C
|
External temp. sensor
| PT1000(Accuracy±0.2ºC)
|
IP Protection class
| IP21
|
Dimensions[WxDxH]
| 698×270×128mm
|
Weight
| 9.5kg
|
Permissible ambient temperature
| 5~40°C
|
Permissible relative humidity
| 80%RH
|
