Heavy-Duty CNC Plate Drilling Machine for Industrial Applications

Product Description

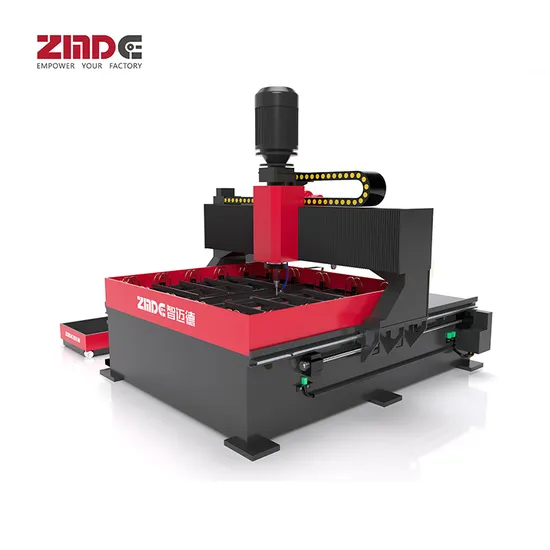

ZMDE Industrial Grade CNC Plate Drilling Equipment CNC H Beam Drilling Machine

> Unmatched cost-effectiveness and value <
1. Constructed from premium solid materials, this machine boasts a low failure rate, significantly cutting down maintenance costs. Key components such as ball screws, linear guides, hydraulic parts, electrical elements, servo motors, and frequency converters all feature renowned industry brands.
2. The CRT display enables automatic chip removal, thereby saving on manual cleaning time and costs.
3. Exceptional precision leads to a high qualification rate of workpieces, reducing consumable costs and enhancing overall efficiency.
> Effortless operation, unparalleled productivity <
1. Featuring an intuitive human-machine interface, this machine generates automatic machining programs with ease.
2. Controlled by advanced CNC and PLC systems, it ensures pinpoint accuracy in positioning.
3. Hydraulic clamps securely hold workpieces, and the operator can manage them effortlessly with a foot switch, reducing labor.
4. Equipped with 12 rapid hydraulic clamps arranged around the table, it can clamp up to four groups of workpieces simultaneously.
5. For smaller workpieces, clamping them at the table's four corners can dramatically shorten the production preparation cycle, boosting efficiency.
6. Clamping small workpieces at the corners of the table notably shortens the production preparation period and enhances productivity.
> Superior quality, versatile applications <
1. Core components like the gantry, column, and table are crafted from solid materials, with the main machine weighing in at a robust 6300kg.
2. This machine serves a wide array of industries and is an essential piece of equipment for plate processing.
3. It accommodates a versatile range of drilling diameters, from 12mm to 50mm, catering to diverse needs.
> Adaptable to various production scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Perfect for small-batch production of multi-species workpieces. Capable of processing plates of different shapes-rectangular, round flange, polygonal-and handling two or four different specifications simultaneously.
3. Suitable for producing multiple layers of thinner sheets in stacks, allowing up to 100mm of drilled holes.
4. The software-managed upper computer handles processing start and end points, enabling drilling of through holes, blind holes, step holes, and chamfers.
> Fully automated production process <
1. High integration of line boards ensures a superior degree of automation, with automatic positioning according to the drilling program.
2. Adjusts the optimal feed volume based on different hole diameters, enhancing processing efficiency.
3. Capable of automatic continuous processing of large hole diameters, achieving one-time processing and forming.
4. Equipped with an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
