Tongda Td241j Automatic China Yarn Machines Cone Machinery Textile Dyeing Machine

Product Description

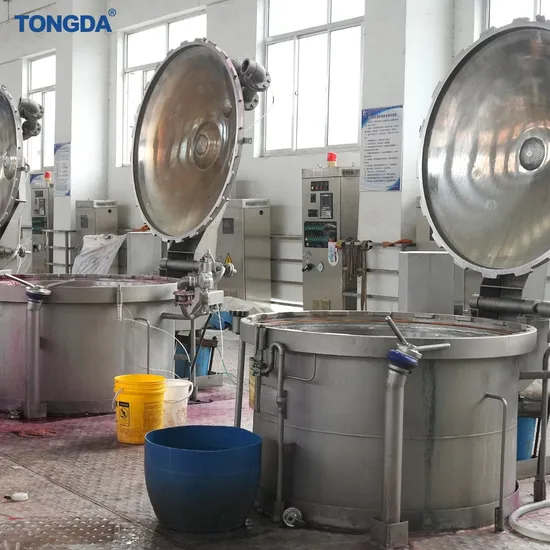

Yarn Dyeing Machine
Yarn dyeing machines suit diverse - material yarns, like natural (cotton, wool, etc.), chemical (polyester, nylon, etc.) and blended ones, and are widely applied in clothing, home textiles and industrial textiles industries.

TD241 Chigh-Temperature, High-Pressure Dyeing Machine
Adoption of high-efficient balanced circulation pump and reversing heat exchanger integrating, high efficiency, energy saving and long lifetime. The equipment can meet the demand of dyeing various kinds of cheeses.

TD241F High-Temperature, High-Pressure Dyeing Machine
Adoption of high-efficient balanced circulation pump and reversing heat exchanger integrating apparatus creates features of compact structure. Has the high efficiency, the province energy, the life to be long.Can meet the needs which each kind of pony roll yarn dyes.


TD241J High Temperature Cone Dyeing Machine
DF241J Model ECO High Temperature Cone Dyeing Machine is suitable for dyeing and bleaching all kinds of nature, chemical fiber and it's blended yarn, such as cotton, polyester cotton blend, polyester, acrylic, just etc. New designed spring heat exchanger, it can fully utilize the heat, so that improve the heating speed and its useful life. Single cycle dyeing method, it saves the exchange time of pump reverse and inverse circulation.


TDGS High Temperature High Pressure Dyeing Machine
Bleaching, scouring, dyeing, rinsing and post-treatment of hank, thread and tape, embroidery thread of various natural and synthetic fibers as well as pure silk. The machine body is made of high-quality, highly corrosion-resistant stainless steel, with durable spray pipes and support devices, high-efficiency yarn rod transmission devices, large-flow, low-lift pumps, efficient heat exchangers, and tools for convenient yarn in and out and spray pipe cleaning.


TDYC Jet-Type Skein Dyeing Machine
It suits various yarns. The new weir - flow jet dyeing tube ensures uniform dyeing, preventing issues like pilling. It has a special water pump and a regulator to adjust water volume according to yarn amount and count, with easy post - dyeing rewinding.

TDY Hank Yarn Dyeing Machine
This machine is suitable for the pre- and post-processing of cotton, wool, artificial wool, acrylic and blended hanks. It can complete multiple dyeing and finishing processes such as bulking, scouring, bleaching, dyeing and softening in one loading of yarn. The spacing between the yarn hanging rods is adjustable to suit the dyeing of various lengths of hanks. Adopting precise forward and reverse controller, the circulation direction of dyeing liquid is automatically changed to ensure uniform dyeing of hanks.

TDYS-200-400 High-Temperature High Pfressure Sand Wash Dyeing Machine
This self - developed dyeing machine integrates bleaching, dyeing, and washing. It operates stably, with direct/indirect heating. It's highly automated, controlling processes like water inlet to program completion. Precise forward - reverse control ensures uniform dyeing. It also saves additives, water, energy, and is eco - friendly.

Hydro Extractor
Suitable for dehydration of woven fabrics, knitted fabrics, tows, etc. in the textile industry. High-quality stainless steel inner and outer cages are beautiful and sturdy with a long service life. It adopts advanced frequency conversion technology, adjustable speed, automatic timing, and energy saving. It adopts advanced frequency conversion automatic brake and abandons mechanical brake, thus greatly reducing the mechanical maintenance rate. Optional: pneumatic cover opening (automatic cover closing at start, automatic cover opening at stop), making operation safer and more convenient. It can be equipped with stainless steel in-and-out cloth racks designed for dehydration of knitted and woven fabrics, making operation more convenient

Radio Frequency Dryer
The radio frequency dryer is efficient and fast, which can heat the materials evenly and achieve fast drying, and has a selective heating effect on different materials. It is energy-saving and environmentally friendly. By adjusting the parameters, the drying process can be accurately controlled, and the original quality of the materials can be better maintained. The equipment is compact and easy to install and maintain.
Main technical parameters

Type	Gauze layer	Pony roll gauze quantity	Biggest load capacity	Pump output
TD241C-43	3	12	12	5.5
TD241C-43	6	24	24	7.5
TD241C-53		36	36	7.5
TD241C-70		54	54	11
TD241C-85		108	108	15
TD241C-90		114	114	15
TD241C-105		144	144	18.5
TD241C-120		216	216	22
TD241C-145		324	324	30
TD241C-166		414	414	37
TD241C-186		540	540	45
TD241C-43	8	32	32	7.5
TD241C-53		48	48	11
TD241C-70	9	81	81	15
TD241C-85		162	162	22
TD241C-90		171	171	22
TD241C-105		216	216	30
TD241C-120		324	324	30
TD241C-145		486	486	45
TD241C-166		621	621	55
TD241C-186		810	810	75
TD241C-200		972	972	90
TD241C-90	12	228	228	22
TD241C-105		288	288	30
TD241C-120		432	432	45
TD241C-145		648	648	55
TD241C-166		828	828	75
TD241C-186		1080	1080	90
TD241C-200		1296	1296	110
TD241C-226		1608	1608	160

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
