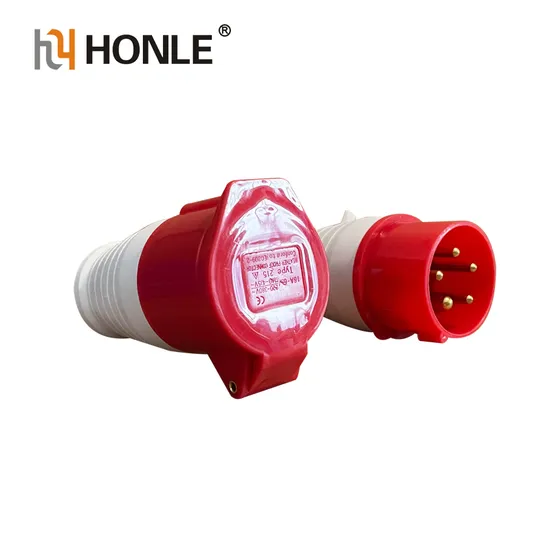

Honle IP44 55 67 Plug for Industry Application with Socket 16A Industrial Plug Cable

Product Description

Product Description This product is a durable and versatile industrial electrical connector, available in various models, currents, and voltage ratings, designed for safe and reliable power distribution with features including multiple pole configurations, color-coding for easy identification, high protection degrees against dust and water ingress, and robust materials like ABS and PA66, all certified by CE and CCC.

	Model	A	B	C
16A	HLSZ-013(-4)	122	59	6
	HLSZ-014	122	65	6
	HLSZ-015	130	72	8
32A	HLSZ-023(-4)	139	75	8
	HLSZ-024	139	75	8
	HLSZ-025	143	84	8
16A	HLSZ-013L	141	59	8
	HLSZ-014L	141	65	8
	HLSZ-015L	169	72	10
32A	HLSZ-023L	178	75	10
	HLSZ-024L	178	75	10
	HLSZ-025L	181	84	10
63A	HLSZ-033	230	109	36
	HLSZ-034	230	109	36
	HLSZ-035	230	109	36

Plug Model:

Current	Position	Voltage	Poles
16A	4h	110-130V	2P+E
	6h	220-240V	2P+E
	6h	220-415V	3P+E
	6h	220-415V	3P+N+E
32A	4h	110-130V	2P+E
	6h	220-240V	2P+E
	6h	220-415V	3P+E
	6h	220-415V	3P+N+E

Features:

Poles	2P+E 3P+E 3P+N+E
Color	Blue Red Yellow
Current(A)	16A 32A 63A
Voltage(V)	AC: 24,42,110,127,220,380,415V DC: 24,110,220,440V
Protection Degree	IP44,IP55,IP67
Earth Contact Position	6H
Outer Material	ABS PA66
Conductor	Brass
Certificate	CE CCC

---
