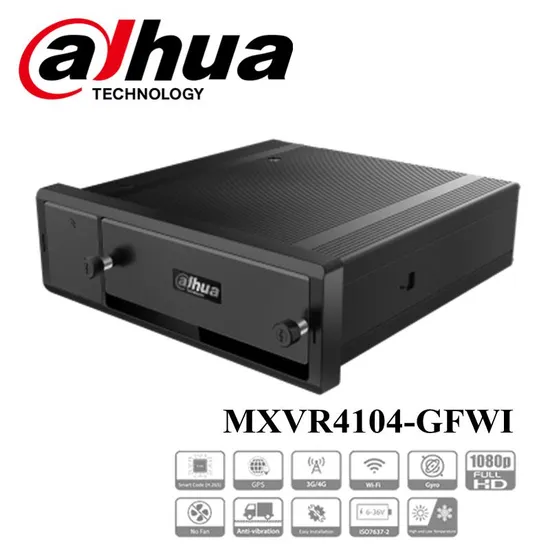

Dahua Mobile DVR 4 Channels H. 265 1/2 Hdds Ai Mobile Video Recorder Mxvr4104-Gfwi

Product Description

Company Profile https://pizetech.en.made-in-china.com/company-Hangzhou-Paize-Technology-Co-Ltd-.html
Dear buyers,
Hangzhou Paize TECHNOLOGY LIMITED is founded in 2015, we are always fousing on providing high quality Secrurity products such as network cameras and recorders, HDCVI cameras and recorders, PTZ cameras , Thermal Cameras, visual intercoms, Blurams, trafic and alarms ets. We have the professional sales and technical surpport team in Hangzhou. And we are a solution provider in the global video surveillance industry ."Sincere service, customer-oriented, professional marketing, and pursuit of excellence" is our business philosophy, "Technology as the driving force, quality to survive" is Our soul. Welcome to conact us for cooperation!
We are professional Dahua and Hikvision &IMOU products wholesales , Neutral and branded packing
you can choose. Product Description MXVR4104-GFWI 4 Channels H.265 1/2 HDDs AI Mobile Video Recorder
> Supports penta-brid(HDCVI/AHD/TVI/CVBS/IP) video input
> Supports 4-ch 2MP analog cameras and 4-ch 2MP IP cameras input
> Supports H.265/smart H.265 video compression
> Supports 1/2 HDDs up to 2 TB for each), and 1 SD card(up to 256 GB)
> Supports DSM/ADAS/BSD
> Multiple network monitoring: Web viewer, Mobile Center & DMSS

Specification

System

Main Processor

High-performance industrial embedded micro-controller

Operation System

Embedded LINUX

Operation Interface

WEB, AV, VGA

Video and Audio

Analog Camera Input

4 HDCVI/AHD/TVI/CVBS cameras, up to 1080P resolution (Audio input is not supported when connecting AHD/TVI/CVBS cameras)

IP Camera Input

4 IP cameras, up to 1080P resolution(extendable via PoE switch)

Dual-stream

Supported (up to D1 encoding for sub stream)

Video Frame Rate

PAL: 1- 25 fps NTSC: 1 - 30 fps

Video Output

AV OUT×1, VGA×1 Output resolution: 800×600, 1280×1024

Display Split

1/4/8/9

OSD Overlay

Channel, time, GPS position, license plate

Image Quality Adjustment

Image quality adjustable across six levels

Compression Standard

Video Compression

H.265, smart H.265, H.264, smart H.264

Audio Compression

G.711A/G.711U/PCM

Network

Mobile Phone Access

iOS, Android

WiFi

Supports built-in 2.4 G Wi-Fi modules.

Browser

Google, PCAPP, IE9 or newer, Firefox

Update

Device Update

WEB, USB, remote platform, upgrade tool

AI

ADAS

Alerts for forward collision, lane departure and vehicles distance too close.

DSM

Supports detection of drowsy driving, distracted driving, calling while driving, no driver, wearing IR blocking sunglasses, smoking when driving and lens tampering.

BSD

Blind Spot Detection

Recording Playback

Record Mode

Auto, Manual, motion detection, schedule, alarm Record alarm > alarm > motion detection > schedule

Recording Playback

1, 4

Backup

HDD, USB flash drive and network backup

Playback Mode

Normal playback

Storage

HDD

1/2 2.5-inch HDDs (SATA)

Heat Dissipation

Built-in fan cooling

SD card

1 (256G)

Alarm

General Alarm

Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, DSM, ADAS and BSD alarm

Abnormal Alarm

No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception

Alarm Linkage

Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour

Sensor

Gyroscope

Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn.

External Port

TV Output

1

Audio Input

4 channels PoE audio input

Audio Output

1 aviation port for audio output 1 audio talk output

Two-way Talk

Supported

Alarm Input

8 channels for alarm input, 1 channel for pulse speed measuring

Alarm Output

1 channel of controllable 12V alarm output, digital quantity

RS-232

2

RS-485

1

USB

Front panel: 2 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port

Pulse Count

1

Satellite Positioning

GPS/GLONASS

Network Port

Front panel: 1 × 10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector

General

Power Supply

DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in under-voltage of vehicle battery.)

Power Consumption

8.4 W (without peripheral ) Low power consumption: < 0.1W

Gross Weight

2.83 KG (6.24 lb) (with packages)

Product Dimensions

1 DIN Front panel: 190 mm × 60 mm (7.5'×2.4') Rear panel: 180 mm × 50 mm (7.1'×2.0') Depth:190 mm (7.5')

Packaging Dimensions

308 mm × 293 mm × 123 mm (12.1'×11.5'×4.8') (L × W × H)

Operating Temperature

-30 °C to +70°C (-22 °F to +158 °F)

Operating Humidity

10% - 90%

Operating Altitude

5000 m

Installation

Assembled before leaving the factory/bracket

Certifications

CE\FCC\EN50155\ISO7637-2\ISO16750\BIS

FAQ 1)Why choose us?Competitive Price:Our company has built up friendly relations with Dahua,Hikvision since 2015.So we get a good price for our customers.If you need our product,pls chat with our salesman and inquire.Friendly and fast service:We have special staff to deal with problems before and after sales .Don't be afraid if you meet problems.We are here!2)When will you ship my order?Products are popular,so inventory is always changing.Please contact us before you pay and we will confirm the date with you.3)Can I install the security cameras by myself?Of course!There is always a user manual in the packaging box.You can contact us directly if you meet any problems.We are here!4)How about warranty?2-year warranty period(since the date you receive the order).5)How about the shipping ?Air, sea, express each station way you chooseIf interested in this camera,pls contact us today and know the most latest information!

---
