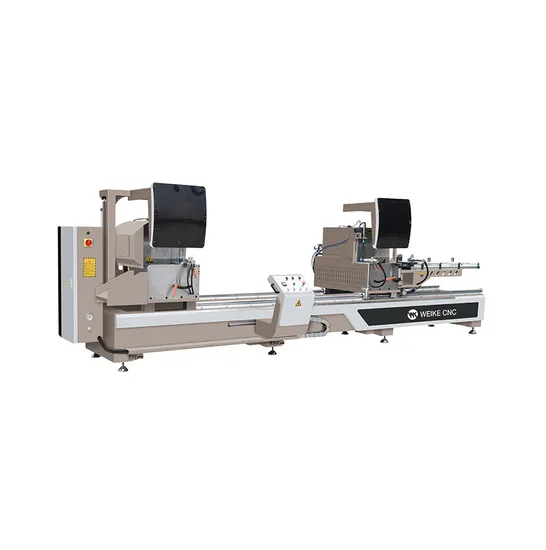

Aluminum Window and Door Digital Display Double Head Precision Cutting Saw Machine

Product Description

Key attributes
Equipment attributes

Equipment name	Digital Display Double Head Cutting Saw
Model	WJZ5-550*4200

Technical Parameter

Power supply	380V/50Hz
Power	2*3KW
Speed	2800r/min
Working pressure	0.5~0.8MPa
Sawing width	165mm
Sawing height	195mm
Sawing angle	45°
Air consumption	200L/min
Dimensions	5800*1500*1700mm
Blade size	φ550*φ30*4.4mm
Warranty	1 year

Lead time

Quantity(sets)	1-1	>1
Lead time(days)	20	To be negotiated

Customization

Customized logo	Min. order: 1 set
Customized packaging Graphic customization	Min. order: 1 set Min. order: 1 set
For more customization details,message supplier

Certifications
WEIKE Precision Aluminum Profile Cutting Saw is advanced cutting machines designed for high-precision cutting of aluminum materials. It is widely used in various industries due to their efficiency,accuracy,and automation capabilities.
Used for cutting aluminum alloy, suitable for different area, such as window door, curtain wall profiles. Saw blade rotates smoothly due to high accurate main spindle. The feeding system adopts the imported linear guide pair,with high accuracy and stability. Two saw heads are adjustable and cut the profiles in 45 degree angle accurately. Auto-opening shield made the operation safety.

Specification

Ultra-long processing lifespan
carbide saw blades
High-precision spindle and saw blade ensure cutting quality.
Right head and left head have own lubrication, so oil can be more average. Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast. Saw blade come out and come back are the same speed


Use planer to ensure the flatness of the mounting guild rails.
Guild is 40mm diameter, two guild distance is 700mm, More stable.
The machine inside design to slope, more easy for chips clean.

Digital Display Operation.
When cutting different length profile, Worker need use hand to pull the handle and moving the head to reach needed cutting position.

Factory Introduction

Shandong Weike CNC Machinery Co.,Ltd.is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.

Packing & Delivery

Professional package of mitre saw cutting machine: 1. Whole film packaging mitre saw cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.

FAQ

Q:How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q:How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.

---
