4 Axis CNC Router 1325 Atc CNC Wood Machine for 20mm Wood

Product Description

2024 Best price 4 axis cnc router 1325 ATC 180 degree cnc wood machine for 20mm wood
Product Description
What's the feature of our 4 Axis ATC CNC Router Machine?
1.Working size:1300*2500*400mm,C axis:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ

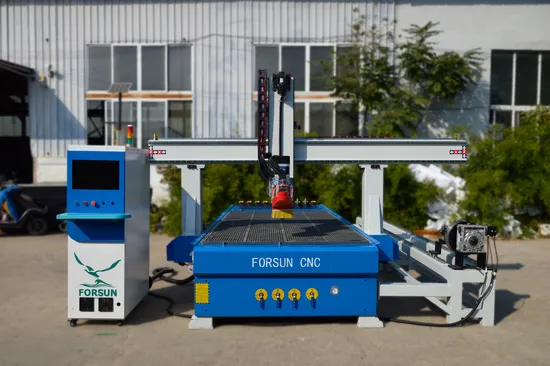

Detailed Photos
Product Parameters
Technical data of 4 Axis ATC CNC Router

Technical Data
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	80000mm/min
3	Max. Working Speed	45000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	3720*2280*2100mm
12	N.W.	2500KG
13	G.W.	2700KG

What's the advantage of our 4 Axis ATC CNC Router Machine?

1.Controller	Syntec controller system 1.With separate control board,easy and convient to operate. 2.More than 20 years experience on cnc,with mature technology
2.Spindle	Italy 9.0kw Spindle 1.Change tool automatically,save time and labor. 2.Strong power and long lifetime.the rotate speed max to 24000rpm
3.Rotate head	Rotate head -Make spindle rotate at C axis to 180°,suitable for side drilling and cutting
4.Servo system	Japan YASKAWA Servo driver and motor -With strong power and high precision
5.Reducer	Japan Shimpo Reducer -The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable
6.Tool sensor	Auto tool Calibration -Promise the working precision for you.

Installation Instructions

What's the benefit of our 4 Axis ATC CNC Router Machine?
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


Packaging & Shipping
What is the package of FORSUN CNC Fiber Laser Cutting Machine?
After Sales Service
What's our service for FORSUN CNC router Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service
Customer visit

Customer visit of Fiber Laser Cutting Machine for flexible dies
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
