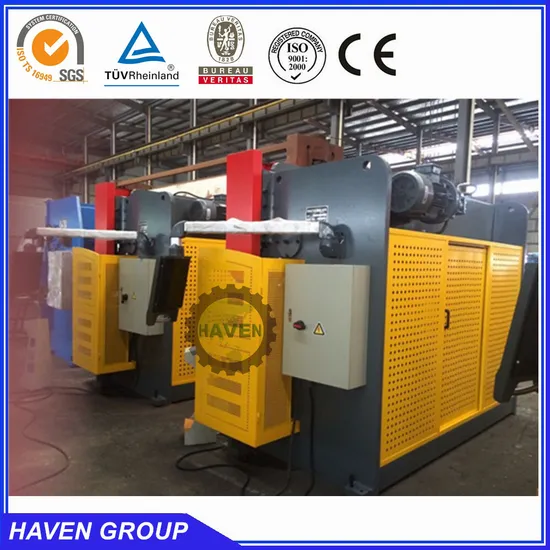

Hydraulic press brake with good quality

Product Description

Hydraulic press brake with good quality
Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter
2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5. OMAGE Hydraulic valve
6. SUNNY hydraulic pump
7. Siemens famous brand motor
8. Siemens or Schneider Electric parts
9. Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.

model	Normal pressure(kn)	Working table length (mm)	Distance between housing	Throat depth (mm)	Ram travel (mm)	Max. open height	Adjust- ment of ram travel (mm)	Working table Height (mm)	Main motor		speed	Oil flow rate (L/min)	Machine overall Dimension (mm) L x W x H	Machine weight(T)
									Power (kw)	Speed (mm/s)	Approach/ Working/ return
30x1300	300	1300	1110	200	40	275	80	710	3	1440	8 / 6 / 8	10	1800x1550x1900	1.8
30x1600	300	1600	1225	200	40	275	80	710	3	1440	8 / 6 / 8	10	1950x1550x1900	2.1
40x1300	400	1300	1080	200	100	275	80	710	4	1440	8 / 6 / 8	10	1950x1550x1990	2.1
40x1600	400	1600	1200	200	100	320	80	710	4	1440	8 / 6 / 8	10	1950x1550x1900	2.3
40x2000	400	2000	1500	220	100	320	80	730	4	1440	8 / 6 / 8	10	2150x1600x1980	2.8
40x2200	400	2200	1500	220	100	320	80	740	4	1440	8 / 6 / 8	10	2250x1700x1950	3
40x2500	400	2500	2000	220	100	320	80	730	4	1440	8 / 6 / 8	10	2505x1125x2000	3.1
50x2500	500	2500	1900	250	120	300	120	750	5.5	1440	8 / 6 / 8	10	2570x1270x1800	3.3
50x3200	500	3200	2600	250	120	300	120	750	5.5	1440	8 / 6 / 8	10	3270x1350x1960	3.2
63x2000	630	2000	1500	250	100	360	100	770	5.5	960	8 / 6 / 8	25	2060x1725x2280	3.8
63x2500	630	2500	2050	250	100	360	100	770	5.5	960	8 / 6 / 8	25	2560x1725x2280	4.2
63x3200	630	3200	2600	250	100	360	100	770	5.5	960	8 / 6 / 8	25	3260x1700x2260	5.5
80x3200	800	3200	2600	250	100	360	100	780	7.5	960	8 / 6 / 8	25	3520x1620x2230	6.6
80x4000	800	4000	3200	250	100	360	100	780	7.5	960	8 / 6 / 8	25	4050x1820x2280	7.5
100x2500	1000	2500	2050	320	130	390	100	850	7.5	960	8 / 6 / 8	25	2600x1750x2230	6.8
100x3200	1000	3200	2600	320	130	390	100	850	7.5	960	8 / 6 / 8	25	3500x1750x2230	7.2
100x4000	1000	4000	3200	320	130	390	100	850	7.5	960	8 / 6 / 8	25	4060x1800x2500	8.2
100x5000	1000	5000	4080	320	130	390	100	850	7.5	960	8 / 6 / 8	25	5100x1800x2700	9
125x2500	1250	2500	2050	320	130	390	100	850	11	960	8 / 6 / 8	25	2600x1750x2330	7.8
125x3200	1250	3200	2600	320	130	390	100	850	11	960	8 / 6 / 8	25	3500x1750x2330	7.5
125x4000	1250	4000	3200	320	130	390	100	850	11	960	8 / 6 / 8	25	4080x1750x2500	7.5
125x5000	1250	5000	4080	320	130	390	100	850	11	960	8 / 6 / 8	25	5080x1750x2600	7.5
160x3200	1600	3200	2600	320	200	470	160	840	11	960	7 / 5 / 7	25	3400x2100x2520	10.5
160x4000	1600	4000	3200	320	200	470	160	840	11	960	7 / 5 / 7	25	4060x2100x2600	11.8
160x5000	1600	5000	4080	320	200	470	160	840	11	960	7 / 5 / 7	25	5080x2100x2600	14
160x6000	1600	6000	4800	320	200	470	160	840	11	960	7 / 5 / 7	25	6100x2100x2680	15.8
200x3200	2000	3200	2600	320	200	520	180	850	15	960	7 / 5 / 7	63	3400x2200x2650	12.8
200x4000	2000	4000	3200	320	200	520	180	850	15	960	7 / 5 / 7	63	4080x2200x2650	14.5
200x5000	2000	5000	4080	320	200	520	180	850	15	960	7 / 5 / 7	63	5100x2200x2660	16
200x6000	2000	6000	4800	320	200	520	180	850	15	960	7 / 5 / 7	63	6120x2200x2660	17.5
250x3200	2500	3200	2600	400	250	560	220	865	18.5	960	7 / 5 / 7	63	3400x2300x2800	13.5
250x4000	2500	4000	3200	400	250	560	220	865	18.5	960	7 / 5 / 7	63	4120x2300x2800	15
250x5000	2500	5000	4080	400	250	560	220	865	18.5	960	7 / 5 / 7	63	5100x2300x2850	17
250x6000	2500	6000	4800	400	250	560	220	865	18.5	960	7 / 5 / 7	63	6120x2300x2900	19

---
