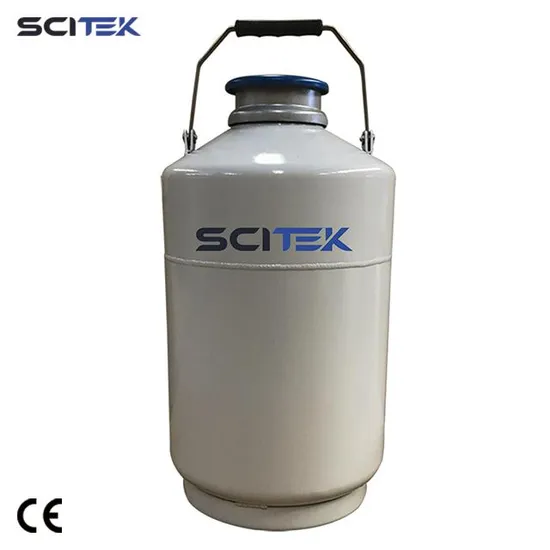

SCITEK Unique Neck Design Liquid Nitrogen Filling Tank With Rollers

Product Description

Product Description
Liquid Nitrogen Tank Features: Unique neck design, low evaporation loss rate.
With rollers for easy to move.
Level display is optional.
Regulator is optional for stable pressure.
Solenoid valve is optional.

Reliability:
A protective operating ring.
Safe structure.
Stainless steel tank.
Five years vacuum warranty;
The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses.
Liquid nitrogen tank mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.

Product Parameters

Model	LNC-100-40	LNC-150-40	LNC-200-40	LNC-240-40	LNC-300-40	LNC-500-40
Performance
LN2 Capacity (L)	100	150	200	240	300	500
Neck Opening (mm)	40	40	40	40	40	40
Daily Evaporation Rate Of Static Liquid Nitrogen (%)	1.3	1.3	1.2	1.2	1.1	1.1
Transfusion Volume (L/min)	/	/	/	/	/	/
Maximum Storage Capacity
Overall Height (mm)	1185	1188	1265	1350	1459	1576
Outer Diameter (mm)	606	706	758	758	857	1008
Weight Empty (kg)	75	102	130	148	202	255
Standard Working Pressure (mPa)	0.05
Maximum Working Pressure (mPa)	0.09
Setting Pressure Of The First Safety Valve (mPa)	0.099
Setting Pressure Of The Second Safety Valve (mPa)	0.15
Pressure Gauge Indication Range (mPa)	0~0.25
Gross Weight (kg)	95.43	129	161.43	174	229.5	321
Shipping Size(WxDxH) (mm)	710x710x1410	810x810x1400	860x860x1450	860x860x1530	960x960x1640	1120x1120x1770

Model	LNC-5-40	LNC-15-40	LNC-30-40	LNC-50-40
Performance
LN2 Capacity (L)	5	15	30	50
Neck Opening (mm)	40	40	40	40
Daily Evaporation Rate Of Static Liquid Nitrogen (%)	3	2.5	2.5	2
Transfusion Volume (L/min)	/	/	/	/
Maximum Storage Capacity
Overall Height (mm)	510	750	879	991
Outer Diameter (mm)	329	404	454	506
Weight Empty (kg)	15	23	32	54
Standard Working Pressure (mPa)	0.05
Maximum Working Pressure (mPa)	0.09
Setting Pressure of the First Safety Valve (mPa)	0.099
Setting Pressure of the Second Safety Valve (mPa)	0.15
Pressure Gauge Indication Range (mPa)	0~0.25
Gross Weight (kg)	25.88	31.86	44.81	60.74
Shipping Size(WxDxH) (mm)	390x390x785	490x490x935	500x500x1080	605x605x1250
