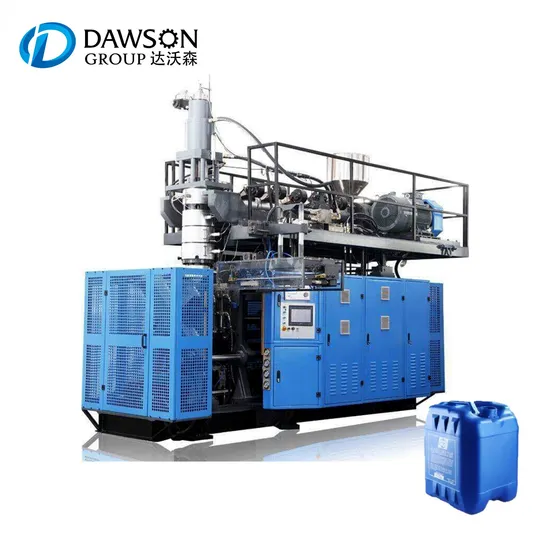

China Manufacture High Quality Blow Molding Machine for 30L 50L Jerry Can

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Product Description

High quality HDPE drums making machine
Servo motor energy saving blow molding machine
HDPE jerry cans blow molding machine
20L to 60L HDPE jerry can blowing moulding machine
Detailed Photos

Product Parameters

Extrusion blow moulding machine ABLD90

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	ABLD90 max: 60L
	Output capacity	40~50pcs/h
	Size	4.6×2.4×3.8(M)
	Weight	12T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	∮90mm,L/D ratio 25, 38CrMoALA	Cooling system available
	Plasticization	100 ~ 130Kg/H	HDPE
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	15~18KW/H
	Extrusion Motor	Three phase asynchronous motor (380V,50HZ)
	Cooling Fan	4zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮280~340mm
	Heating zone	4 Stainless steel heating cycle
	Heating power	5~7KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	210~260KN
	Template distance	450~1000mm
	Max mould size	700X950mm
	Mould material	High grade 50# steel
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)	Japanese Mitsubishi PLC system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor (380V/220V,50/60HZ)
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6Mpa
	Air displacement	0.8M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	90L/min
	Water pressure	0.3-0.6MPa

High quality mould

High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Company Profile
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Customer Feedback




After Sales Service


FAQ

Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
