500kg 4m/6m/8m/10m/12m/14m Self-Propelled Battery Powered Electric Aerial Working Platform Table Small Mini Mobile Hydraulic Trailer Scissor Lift with CE

Product Description

500kg 4m/6m/8m/10m/12m/14m Self-Propelled Battery Powered Electric Aerial Working Platform Table Small Mini Mobile Hydraulic Trailer Scissor Lift with CE for Scaffold
Product Description

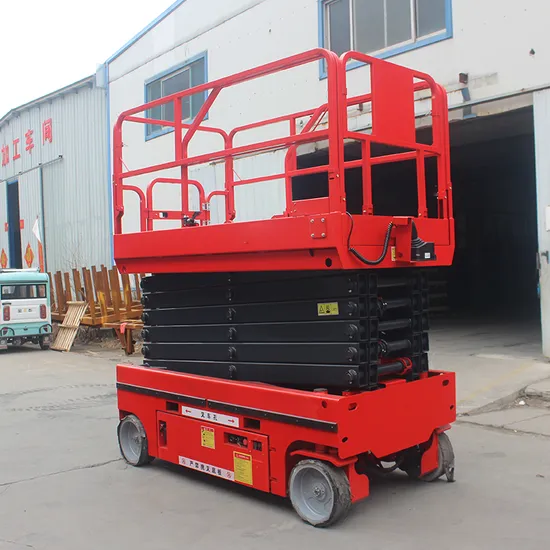

MobileScissorTve lifting Platform
Focusingoncustomized productionofhigh=altitude work platforms
Various models, capable of raising 3-16 meters
This type scissor lift own automatic walking function.It can be used in different working condition,and do not need external power supply and artificial traction.
It is mobile flexible, convenient operation, lift freely, only one people can finish forward,backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform board, self-movement at a the full height. Features:
1.Nice appearance, compact structure
2.Strong power performance,long working time
3.Easily moved, flexible operation and excellent field adaptability
4.Extendable platform and foldable guardrails, larger working space

5.Strong struction and low maintainance cost





Detailed Photos
Product Parameters

Product	Model
Self Propelled Scissor Lift	YGQY-6,YGQY-8, YGQY-10,YGQY-12
Full Automatic scissor lift	YGPT0810, YGPT1012, YGPT1214, YGPT1416,
Crawler scissor lift	YGPT0810LD, YGPT1012LD, YGPT1214LD, YGPT1416LD

Model	Platform Height(m)	Working Height(m)	Platform Size(m)	Load (kg)	Overall Dimension(l*w*h)	Lifting Motor (V/kw)	Weight(kg)
YGPT0608NP	6	8	2.27*0.81	380	2.485*0.82*1.86	24/4.5	1820
YGPT0612	6	8	2.27*1.11	450	2.485*1.21*1.68	24/4.5	2070
YGPT0808NP	8	10	2.27*0.81	230	2.492*0.82*1.985	24/4.5	1970
YGPT0812	8	10	2.27*1.11	450	2.485*1.21*1.8	24/4.5	2220
YGPT1012	10	12	2.27*1.11	320	2.485*1.21*1.93	24/4.5	2932
YGPT1212	11.8	13.8	2.27*1.11	320	2.485*1.21*2.06	24/4.5	2990
YGPT1412	13.7	15.7	2.64*1.125	230	2.86*1.28*2.1	24/4.5	3730

Our Advantages

Company Profile

Certifications
Packaging & Shipping

---
