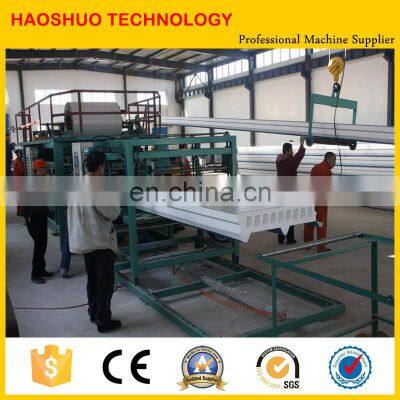

High output Continuous PU Sandwich Panel Production line, making machine

Product Description

Product Description
High output Continuous PU Sandwich Panel Production line, making machine
Properties:
The PU panel forming machine adopts frequency conversion to adjust speed. This machine has features of stable performance, high quality and low price, thus in the leading place in China.
Components of machine:

Components		QTY.
Hydraulic Uncoiller		2set
Platform for forming machine		1set
Roll Forming System		2set
Foaming system		1set
Double Belt Laminator		1set
Cutting System		1set
Stacking system		1set

Technical parameters:

Item		Specification
Raw Material	Type	Color steel coil
	Thickness(mm)	0.4-0.7
	Yield strength(mpa)	235-345
	Max. Width	1250
Sandwich Panel	Panel width	950-1000mm (according to profile requirement)
	Mini thickness	40mm (corrugated sandwich panel) 50mm (wall panel)
	Max. Thickness	150mm (corrugated sandwich panel) 200mm (wall panel)
	Min. cutting length	3 m
	Max. Stacking length	15m
Working height		1000mm (height of panel coming out)
PU forming density		About 40 kg/m3
Pressure for foaming		150-200 bar
Effective length of double belt conveyor		23m
Roller material		45# steel , coated with Chrome
Shaft for rollers		Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)		3-8m/min (adjustable)
Speed adjusting mode		Misubishi frequency transformer
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Nemicon Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Total power(kw)		About 100KW

FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Alibaba with SGS assessment (Audit report can be provided).
