Basic Info.
Harvest method
Grab and Lift
Transmission
Hydraulic Gears and Racks
Portable Harvester Type
Backpack Type
Certification
ISO9001:2008, CE
Application Field
Agriculture, Forestry
Applicable Industries
Farms
Power
According to Tractor
Service Provided
Free Spare Parts, Video Technical Support, Online
Core Components
Hydraulic Valve, Rotating Base, Hydraulic Cylinder
Key Selling Points
Hydraulically Driven, Strong Structure
Transport Package
Iron Frame
Specification
2400x700x1400
Production Capacity
40 Pieces/ Month
Product Description
Product Description
ZL Series Grabber for palm fruit collecting hot in the oil palm planting area cause of its convinence and flexiblity.
We are famous RUNMING, Professional Manufacture of Forestry machinery of grabbers for oil palm fruit harvesting work.
Detailed Photos
Product Parameters
| Yucheng Runming Machinery Co.,LTD |

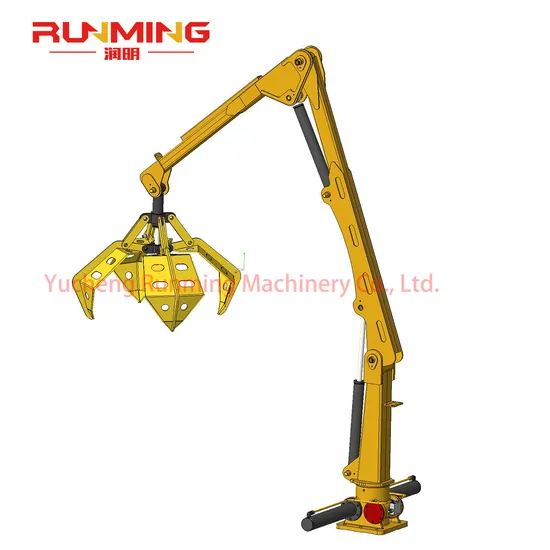

360 degree swing angle crane grab jaws for picking up palm fruit China Original Factory!!! |
Crane type Boom system | RM/ZL320L | RM/ZL320 | RM/ZL380L |
| Max. outreach [m] | 3.2 | 3.2 | 3.8 |
| Slewing torque net [KN.M] | 5 | 5 | 5 |
| Slewing angle [°] | 380° | 380° | 380 |
| Lifting force at Max length [kg] | 180 | 180 | 150 |
| Boom telescopic | Contain(0.4m) | Without | Without |
| Recommended pump capacity [L/min] | 25-40 | 25-40 | 25-40 |
| Operating pressure [bar] | 180 | 180 | 180 |
| Weight of jaw grapple | 4 jaws | 4 jaws | 4 jaws |
| Max jaw opening [mm] | 860 | 860 | 860 |
| Grab weight [kg] | 55 | 55 | 55 |
FAQ
Q1. CAN I ORDER 1 SET FOR SAMPLE?
A: Yes, of course.
Our agri machines are exported to tractor manufactures, agri machine dealers, owners, etc.
Buyer(s) will pay for the product and freight.
Q2. HOW TO MAKE PAYMENT? WHAT IS THE DELIVERY TIME?
A: 30% T/T with the order, and balance payment 7days before shipment.
25-40days after receiving the deposit, according to your order.
Q3. WHAT IS THE WARRANTY?
A: 1 Year Warranty.
We will send you the spare parts free of charge during the period if it is quality problem, or send it in the next order.
Q4. WHAT IS LOADING PORT?
A: Qingdao Port, China
Q5. How do you control your quality?
All of our products are 100% inspected before shipment. Our whole manufacturing processes are under a very serious and strict system in our company.
>>
