Electric Portable Concrete Mixer Self Loading Concrete Mixer for Sale

US$15,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Mixer

Structure

Cylinder Type

Productivity

35m²/h

Feeding Height

1400mm

Vibrating Amplitude

2.6mm

Certification

ISO9001: 2000, CE

Condition

New

Color

White

out Capacity

1000L

Input Capacity

1500L

out Mass

2400kg

Mixing Power

37kw

Weight

6200kg

Planet

2 Unit

Main Planet

4 Unit

Paddle

1 Unit

Discharging Paddle

1 Unit

Discharging Power

3 Kw

Transport Package

Standard Package

Specification

2230x2080x1880mm

Trademark

SDDOM

Origin

China

HS Code

8474310000

Production Capacity

100sets/Month

Product Description

Concrete Mixer electric portable concrete mixer self loading concrete mixer for sale
Twin shafts mixer and Planetary mixer both are provided.
Twin shafts mixer: Mixing Blade and scraper
With 17% - 23% Cr Chromium
There is oil temperature testing sensor inside the reducer.
Test oil temperature automatically

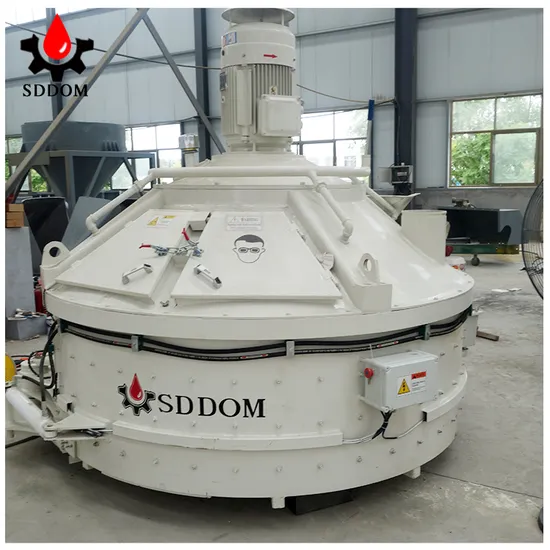

Planetary mixer: The mixers with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic).
The great versatility of the mixer enables it to be used not only in the production of concrete,
but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc.

Planetary Mixer Technical Parameters
Model	Filling Volume(L)	Feeding Capacity(KG)	Compacted Concrete(L)	Mixing Power (KW)	Mixing Star*MixingBlade (Qty)	Weight (T)
MP50	75	120	50	3	1*2	0.7
MP100	150	240	100	5.5	1*2	1
MP250	375	600	250	11	1*2	1.8
MP330	525	790	330	15	1*2	2.2
MP500	750	1200	500	18.5	1*2	2.5
MP750	1125	1800	750	30	1*3	3.5
MP1000	1500	2400	1000	37	2*2	5.5
MP1500	2250	3600	1500	55	2*2	6.5
MP2000	3000	4800	2000	75	3*2	8.5
MP2500	3750	6000	2500	90	3*3	10.5
MP3000	4500	7200	3000	110	3*3	11
Features

JS Twin Shafts Mixer
Introduction of MP Series Planetary Mixer

1.Gearing System
	Driving system consists of motor and hardened surface gear (patented product) which is specialized designed by our company. The improve model has lower noise, longer torque and more durable. Even in strict production conditions, the gearbox can distribute power effectively and evenly to each mix and device, ensuring normal operation, high stability and low maintenance.
2.Mixing Device
	Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.
3.Discharging Device
	According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.
4.The Hydraulic Power Unit
	A special designed hydraulic power unit is used to provide power for more than one discharging gates. Equipped with manual discharging function, on emergency, these discharging gates can be opened by hand.
5.Mixing Locus Diagrams
	The diagram shows the perfect mixing action of the planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star's action every 4 revolutions(6 seconds) and that each zone is covered at regular intervals in time.
6.Packing

Customer Visiting
Contact us
