Semi-Automatic 4-Cavity Plastic Pet Bottle Making Machine

Product Description

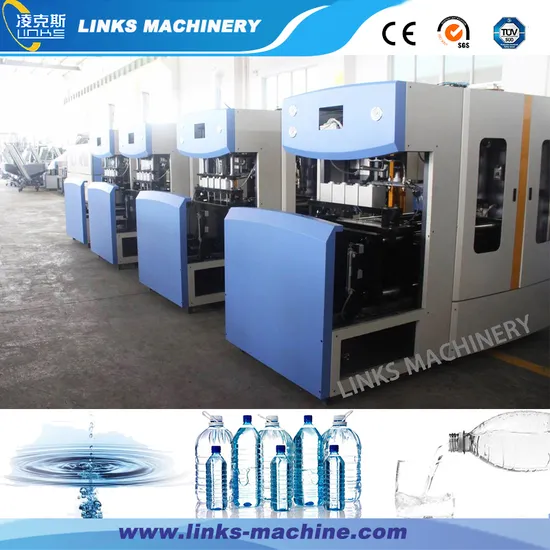

2000BPH 4-Cavity Semi-auto Plastic Pet Bottle Blow Molding Machine
The machine equip two 1.2M3/Min/30kg high air compressor, one 3 hp chiller and cooling dryer.
This model machine is advanced semi-auto blowing machine, 4-cavity one, capacity can reach 2000bph, and the machine only requests 1 worker operation.

General information	LK-SA4
Clamping force	300KN
Clamping stroke	350mm
Max. stretching stroke	380mm
Number of cavities	4-cavity
Theoretical output	2000bph
Max. mold thickness	190mm
Electrical system
Voltage standard	380v/3PH/50Hz or special order
Total power (full loaded)	18KW
Container
Max. container volume	2.5L
Neck diameter range	15-45mm
Max. container diameter	110mm
Max. container height	370mm
Auxiliary system
High air compressor	>1.2m3/3.0Mpax2 (0.5L)
Dimension & weight (LxWxH)
Blow molding machine	1.9x0.88x1.8m
Pre-heater	1.9x0.66x1.6m
Net weight	1.3T

No	Name	Brand
1	Assembly cylinder	FESTO
2	Stretching cylinder	FESTO
3	Sealing cylinder	FESTO
4	Computer controller	BOTHFIT
5	Touch screen	BOTHFIT
6	Motor	XINGXING
7	lead rail	ABBA
8	Oil-water separator	GERMAN FESTO
9	High pressure air tank	DAFENG
10	Low pressure air tank	MG
11	Blowing valve	MG

FAQ 1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

k English, and have much experience oversea work.

---
