Three Layers Biodegrade Polythene Film Extrusion Machine

Product Description

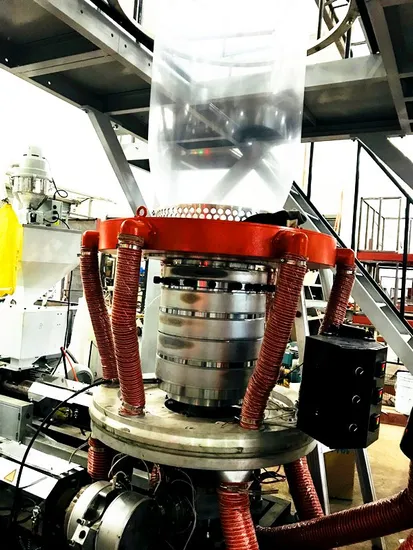

SJ-L 3layers High Speed Film Blowing Machine
Description :
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
Main Technical Parameter:

Model	1300	1700
Screw Diameter	Ф50×2	Ф60×2
Screw Ratio L/D	30:1	30:1
Screw Speed	15-120r/min	15-120r/min
Main Motor Power	18.5Kw×2	30Kw×2
Extrusion Output	100-120kg/h	180kg/h
Range of Die	Ф250 For LDPE	Ф350 for LDPE
Single-sided Thickness of Film	0.02-0.12mm	0.02-0.12mm
Max. Folding Width of Film	1200mm	1500mm
Electric Total Capacity	50Kw	80kw
Overall Dimension	6000×3500×6500mm	7000×4000×8000mm
Weight of Machine	8T	12T

FAQ
1.Is your company trading company or manufacturer?
We are manufacturer specialized in plastic machine for more than 35 years, all of our engineer with more than 20 years experience.
2. Where is your factory? How can i visit your company?
Our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station. Welcome to visit our manufacture.
3 What's the scale of your company?
Our company covers 14000 square meter, over 11000 square meter of which is bulding area, consisting over 100 staffs, 20 engineers for technical support.
4 How long is your delivery time?
Our delivery time is 30-45 days. Ugently, we can make your machine first. About 10 days.
5 What's your warranty policy?
18 month guarantee and 1 year after-sales maintenance.

6 What package do you use for the product?
Covered with plastic film. Wooden box package need extra cost .

7 Does your manufacture provide installation service?
Our engineer can go to customer factory to installation. Buyer should prepare materials to test the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary since the day start out until the day arriving at factory.
8 What are your terms of payment?
We accept T/T, L/C. western union.
9 How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
10 Does your engineer understand English?
Our engineer understand a little English. But don't worry, We have professional translators.And All our engineer have more than 20 years machine installation experience.

---
