| US$190,000.00 | 1 Piece (MOQ) |

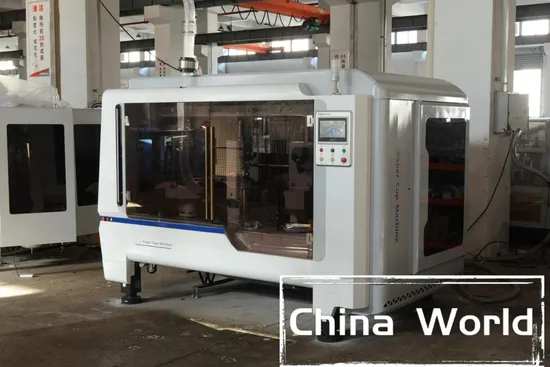

| Model: | CW-230A High-Speed Paper Cup Forming Machine |
| Cups Specifications: | 6-22 oz |
| Forming size: | Top:60-100mm,Bottom:40-75mm Height:60-180mm |
| Paper Specifications: | 170-350g/m2 |
| Paper material: | Single /double PE/PLA |
| Speed: | 200-230pcs/min |
| Power supply : | 380V 50Hz three phases |
| General Power : | 50Kw |
| Gas source: | 0.6m3/min |
| Weight: | 7500Kg |
| Index | Configuration Name | Brand | Remark |
| 1 | Inverter | Toshiba Japan | |
| 2 | PLC | Huichuan | |
| 3 | Screen | Huichuan | |
| 4 | Relay | Izumi Japan | |
| 5 | Photoelectric switch | Autonics | |
| 6 | Servo system | Huichuan | |
| 7 | Programming controller | Huichuan | |
| 8 | Main motor (servo) | Huichuan | |
| 9 | Folding, embossing, rolling and servo motor | Huichuan | |
| 10 | Suction sheet servo motor | Huichuan | |
| 11 | Feed paper servo motor | Huichuan | |
| 12 | Transfer servo motor | Huichuan | |
| 13 | Pneumatic component | SMC |
