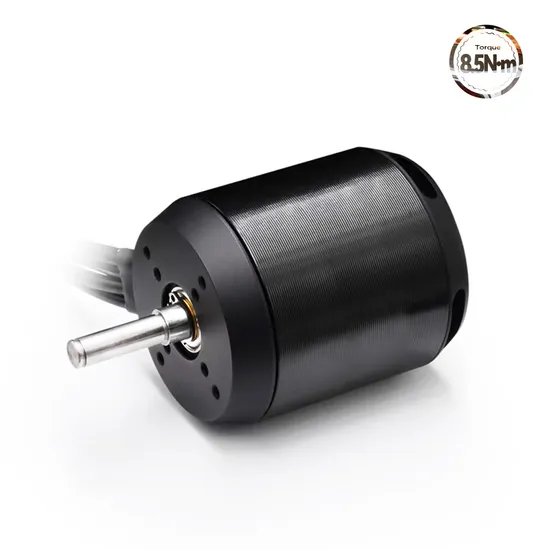

Freerc Motor MP6374 Kv170 RC Outrunner Brushless DC Motor for Electric Skateboard

US$60.00
50-99 Pieces
US$58.00
100-199 Pieces
US$56.00
200-499 Pieces
US$54.00
500+ Pieces

Basic Info.

Model NO.
6374
Excitation Mode
Shunt
Function
Driving
Casing Protection
Explosion-Proof Type
Number of Poles
40
Structure and Working Principle
Brushless
Type
Z4
Certification
CE/RoHS
Brand
EV Craft
Rpm
7600
Kv
150/170/190/220(Customizable)
Effiency
89%
Max. Voltage
34V
Motor Weight
900g
Torque
8n.M
Li - Po
6s-12s
Peak Current
95A
Power
3250W
Idle Current
1.9A
Transport Package
Foam Box with Carton Box
Specification
63mm x 74mm
Trademark
EVCRAFT
Origin
Dongguan Guangdong China
HS Code
8503009090
Production Capacity
100000PCS/Year

Packaging & Delivery

Package Size
12.00cm * 12.00cm * 15.00cm
Package Gross Weight
1.200kg

Product Description

Product Specification:
Motor MP6374 Max power 3250w
Max current 90A Max voltage 6-12s
Max torque 8Nm Resistance 0.05Ohm
ESC VESC4/VESC6/3-12s 50A Weight 0.9kg
Motor length 74mm Motor diameter 63mm
Shaft 8/10mm Wire No.12 silicon wire
Other details information: Max Power: 3250 Watts Max Current: 85 Amps Max Volts: 12S Max Torque: 8Nm Motor Resistance: 0.05Ohm Recommend ESC: 3-12S 50A Weight: 1.9 lb / 0.86 kg The motor length:74mm The motor diameter: 63mm SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot. Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male. Wire configuration: Blue = A Black = B Yellow = C Stator: 0.2mm thickness lamination japan steel Magnet: N42SH high temp curve magnet BLDC Motor The number of pole: 14
