Chisel Subsoiler Heavy Duty Trencher Subsoiler Plow

Product Description

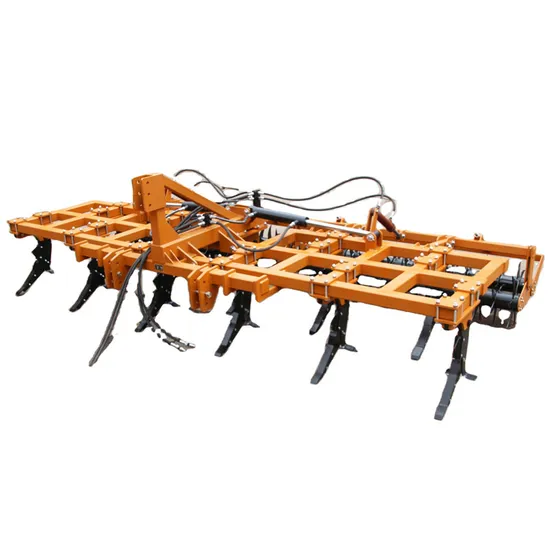

Wing folded Subsoiler
1SZ series loosener joint soil preparation machine is the subsoiling and ploughing work organically integrated together joint operating machinery, Can be completed once the soil deep loosening and breaking the soil surface, smooth operation.

The subsoiler joint soil preparation machine is good performance of into the soil, Deep loosening after surface fluctuation is not obvious, aerates and fluff out the soil. After plowing groove forming ditch can keep soil moisture, improve the subsoiling on crop yield increase. The machine has the advantages of reasonable design, simple mechanism, easy installation and adjustment, application of hydraulic system and simplify the operation, control the tillage depth, time saving features.

The Wing folded Subsoiler quickly folds and locks the working components on both sides through a hydraulic device, ensuring a transportation width of less than 3 meters, meeting road transportation regulations and ensuring safe transportation.

Name	Unit	Wing folded subsoiler
Model	-	1SZ-3.0	1SZ-4.0	1SZ-5.0
Working width	mm	3000	4000	5000
Working depth	mm	200-550
Matched power	HP	90-160	130-220	160-240
Overall Dimension L×W×H	mm	3100×3400×1600	3100×4400×1600	3100×5400×1600
Weight	kg	1800	2000	2200
Quantity of working bodies (tines)	pcs	7	9	11
Spacing of working bodies	mm	500	500	500
Quantity of working roller	pcs	2	2	2
Linkage	-	Three-point mounted
Ground clearance	mm	≥360

Packaging & Shipping


Our Services
Prompt attention to all of your inquiries and positive attitude;
Most competitive cost and superior quality;
We win good reputation because adhering to "Survival by Quality, Development by Technology & Credit".
Welcome OEM.
Provide complete technical guide after-sale services.

Company Information
A professional manufacturer of agricultural machinery
Annual foreign exchange earnings reaches USD 2 million
80% of which by self-managed export
Invested RMB 70 million to build up a casting and machining production line covering a land area of 50mu. It is planned to produce 500 tons of various casting parts monthly and 80% of them will be exported.
The company has advanced equipment, such as 10 numerical control machine tools and 2 machining centers, and strong technical strength, and more than 20 technicians.
Built CAD system, speeding up the new product development.

FAQ
About the package: Iron frame or iron frame box. We try to save a space, and ensure easy installation after the arrival of the goods.
About MOQ: The machine MOQ is one set. The spare part MOQ is 500 pieces.
About customize service:We welcome OEM, processing with supplied drawings and samples.
About shipping: We ship the goods by sea in Qingdao port. If you have no a shipper, we will choose a reliable and cheap one to ship.
About payment: 1.T/T 30% deposit, 70% before shippment ( after inspection); 2.L/C at sight; FOB Qingdao price, because the different goods so different weight, volume, for saving time to calculate.

---
