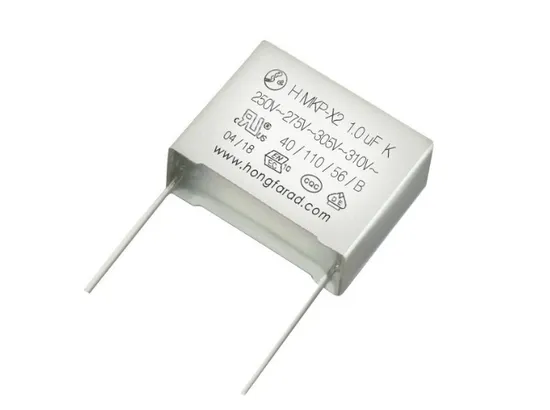

1.0UF 250/275/305/310V, Hmkp X2 Metallized Polypropylene Film Intereference Suppresion Capacitor

Product Description

1.0UF 250/275/305/310V, Hmkp X2 Metallized Polypropylene Film Intereference Suppresion Capacitor
Product Description Features
1. Metallized polypropylene structure2. Withstanding overvoltage stressing3. Excellent active and passive flame resistant abilities4. Widely used across-the-line, interference supression circuit, etc.

Specifications

Climatic Category/Passive Flammability Class:	40/110/56/B
Operating Temperature Range:	-40ºC~+110ºC
Class:	X2
Rated Voltage:	250/275/305/310VAC,50/60Hz
Capacitance Range:	0.0010μF~10.0μF
Capacitance Tolerance:	±10%(K),±20%(M)
Voltage Proof:	Between Terminals:	2 000Vdc(2S) CR≤0.1μF 1 800Vdc(2S) CR>1.0μF
	Between Terminals to Case:	2120Vac(1min)

Insulation Resistance:	≥15 000MΩ, CR≤0.33μF ≥5 000S, CR>0.33μF (20ºC,100V,1min)
Dissipation Factor:	0.0010μF≤CR≤0.47μF	≤10*10-4(1KHz,20ºC)	≤20*10-4(10KHz,20ºC)
	0.47μFR≤1.0μF	≤20*10-4(1KHz,20ºC)	≤40*10-4(10KHz,20ºC)
	CR>1.0μF	≤30*10-4(1KHz,20ºC)	-------------------

Safety Approvals
Outline Drawing Dimensions(mm)

Rated Cap.uF	310VAC					Rated Cap.uF	310VAC					Rated Cap.uF	310VAC
	W	H	T	P	d		W	H	T	P	d		W	H	T	P	d
	max	max	max	±1.0	±0.05		max	max	max	±1.0	±0.05		max	max	max	±1.0	±0.05
0.001	10	9	4	7.5	0.6	0.01	18	11	5	15	0.8	0.47	31	18	9	27.5	0.8
0.001	10	9	4	7.5	0.6	0.01	18	11	5	15	0.8	0.68	31	19	11	27.5	0.8
0.0022	10	9	4	7.5	0.6	0.022	18	11	5	15	0.8	0.82	31	19	11	27.5	0.8
0.0022	10	9	4	7.5	0.6	0.022	18	11	5	15	0.8	1	31	19	11	27.5	0.8
0.0033	10	9	4	7.5	0.6	0.033	18	11	5	15	0.8	1.2	31	22	13	27.5	0.8
0.0033	10	9	4	7.5	0.6	0.033	18	11	5	15	0.8	1.5	31	22	13	27.5	0.8
0.0047	10	9	4	7.5	0.6	0.047	18	11	5	15	0.8	1.8	31	24.5	14	27.5	0.8
0.0047	10	9	4	7.5	0.6	0.068	18	11	5	15	0.8	2	31	28	14	27.5	0.8
0.0068	10	9	4	7.5	0.6	0.082	18	11	5	15	0.8	2.2	31	28	14	27.5	0.8
0.0082	10	9	4	7.5	0.6	0.1	18	11	5	15	0.8	2.5	31	28	17	27.5	0.8
0.01	10	9	4	7.5	0.6	0.1	18	12	6	15	0.8	2.7	31	33	18	27.5	0.8
0.022	10	9	4	7.5	0.6	0.15	18	12	6	15	0.8	3	31	33	18	27.5	0.8
0.033	10	11	5	7.5	0.6	0.18	18	13	7	15	0.8	3.3	31	33	18	27.5	0.8
0.047	10	12	6	7.5	0.6	0.22	18	14.5	8.5	15	0.8	4.7	31	37	22	27.5	0.8
0.068	10	13.5	8.5	7.5	0.6	0.27	18	14.5	8.5	15	0.8	1.5	41	26	14.5	37.5	1.0
0.1	10	13.5	8.5	7.5	0.6	0.33	18	14.5	8.5	15	0.8	1.8	41	26	14.5	37.5	1.0
0.0022	13	9	4	10	0.6	0.39	18	16	10	15	0.8	2	41	26	14.5	37.5	1.0
0.0022	13	9	4	10	0.6	0.47	18	16	10	15	0.8	2.2	41.5	26	14.5	37.5	1.0
0.0047	13	9	4	10	0.6	0.47	18	18	9	15	0.8	2.5	41.5	26	14.5	37.5	1.0
0.0047	13	9	4	10	0.6	0.56	18	18	10	15	0.8	2.7	41.5	26	14.5	37.5	1.0
0.0068	13	9	4	10	0.6	0.68	18	19	11	15	0.8	3	41.5	30	17	37.5	1.0
0.0068	13	9	4	10	0.6	0.68	18	21	12	15	0.8	3.3	41.5	30	17	37.5	1.0
0.0082	13	9	4	10	0.6	0.15	26.5	15	6	22.5	0.8	3.9	41.5	30	17	37.5	1.0
0.0082	13	9	4	10	0.6	0.18	26.5	15	6	22.5	0.8	4.7	41.5	35	19	37.5	1.0
0.01	13	9	4	10	0.6	0.22	26.5	15	6	22.5	0.8	5.6	41.5	35.5	22.5	37.5	1.0
0.01	13	9	4	10	0.6	0.27	26.5	15	6	22.5	0.8	6.8	41.5	35.5	22.5	37.5	1.0
0.022	13	9	4	10	0.6	0.33	26.5	16.5	7	22.5	0.8	8.2	41.5	41	27.5	37.5	1.0
0.033	13	9	4	10	0.6	0.39	26.5	16.5	7	22.5	0.8	10	41.5	41	27.5	37.5	1.0
0.047	13	11	5	10	0.6	0.47	26.5	17	8.5	22.5	0.8
0.056	13	11	5	10	0.6	0.56	26.5	19	10	22.5	0.8
0.068	13	12	6	10	0.6	0.68	26.5	19	10	22.5	0.8
0.082	13	12	6	10	0.6	0.82	26.5	19	10	22.5	0.8
0.1	13	12	6	10	0.6	1	26.5	20	11	22.5	0.8
0.15	13	14	8	10	0.6	1.2	26.5	22	12	22.5	0.8
0.18	13	16	8	10	0.6	1.5	26.5	23	13	22.5	0.8
0.22	13	16	8	10	0.6	1.8	26.5	24	14	22.5	0.8
						2	26.5	25	15	22.5	0.8
						2.2	26.5	25	15	22.5	0.8
For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability.
