4 Axis CNC Milling Machine Price Vmc 1050 China 3 Axis Vertical Machining Center

Product Description

4 Axis CNC Milling Machine Price VMC 1050 China 3 axis CNC Vertical Machining Center
CNC Vertical Machining Center Features:
High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Vertical Machining Center CNC Milling Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

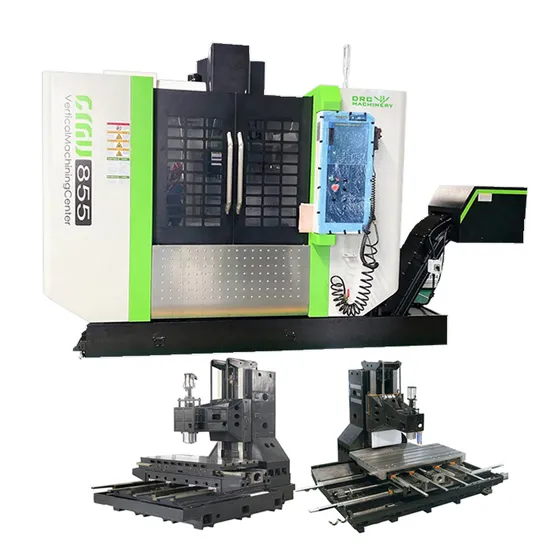

The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability .
The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy;
The three-axis transmission adopts. Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;
The base adopts a casting large water tray structure, which has good waterproof performance;
The high-rigidity Taiwan-made BT40 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;

Model	VMC850 (GSK25i system)	VMC 1050(GSK25i system)
Travel parameters of 3 axis
X /Y/Z axis travel	800/500/500mm	1050/500/500mm
Spindle nose to table surface	120-620mm	120-620mm
X/Y/Z axis AC servo motor	torque N.m 15/15/22	torque N.m 15/15/22
Spindle center to column surface	550mm	550mm
Worktable
table size	1000×550mm	1000×550mm
Max.loading	600kg	600kg
T Shot	5×18×90mm	5×18×90mm
Feeding parameters
X/Y/Z axis rapid feed	24/24/20m/min	20/20/18m/min
Cutting feed	1-10m/min	1-10m/min
Spindle parameters
Main shaft connection	Belt	Belt
Spindle taper	BT40-140	BT40-150
Range of spindle speed	8000rpm	8000rpm
Spindle motor	7.5kW	7.5kW
ATC paremeters
ATC capacity	24qty	24qty
Max.tool dia	Φ80/Φ150mm	Φ80/Φ150mm
Max.tool weight	8kg	8kg
Precision
Position accuracy(JIS standard)	±0.008/300mm	±0.008/300mm
Repeat positioning accuracy(JIS standard)	±0.005mm	±0.005mm
Shape and weight
Dimensions	2750×2300×2300mm	2800×2360×2450mm
Weight	5200kg	5600kg

---
