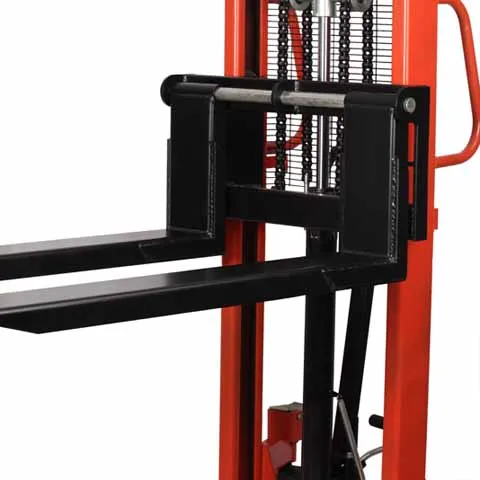

Double Mast Fixed Fork Manual Forklift Pallet Stacker

Product Description

Hydraulic stacker, also known as hydraulic forklift, is a low-cost, non-polluting, non-powered loading and unloading product. It is compact, flexible and easy to operate. It is widely used in factories, workshops, warehouses, stations and other places.
Advantage
The body mechanism is made of high-quality steel, which is solid and durable. The forklift itself is light in weight and easy to operate. Use electromechanical integration hydraulic station. High-strength steel forks, safe and reliable, strong and durable. High-quality cylinders, imported seals, greatly improve sealing performance and reduce costs. High-strength chain plate, bold forged chain, improve durability. Wear-resistant caster mute technology, adapt to any venue, the new caster upgrade technology to improve work efficiency. Forged fork design, thickened and long adjustable forks, both large and small goods can be used. Specification

Rated carrying capacity	1000kg	2000kg	3000kg
Load center distance	450mm	450mm	450mm
Minimum fork height	90mm	90mm	90mm
Lifting height	1600/2000/2500/3000	1600/2000/2500/3000/3500	1600/2000/2500
Body length	1200	1470	1480
Body width	700	700	700
Body height	1400/1600/1850/2100	1400/1600/1850/2100/2350	1400/1600/1850
Fork size	90*4.5mm	120*5.75mm	150*7.75mm
Fork length	800	800	800
Fork adjustment width	200-730	260-740	320-770
Turning radius	1040	1050	1085

1)The hydraulic consists of three parts:
the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.
2)Big pump, strong heart 1.Frame thickness
The frame thickness has 8mm.
2. Fork size
One model for most countries.
General size: 330-740mm
It is the adjustable fork,
the fork size can be adjusted from 330mm to 740mm.
And the leg width is 690mm.

FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory. We specialize in producing all kinds of Lifting crane, such as mini electric hoist, electric winch, hand pallet truck, manual hand stacker, electric chain hoist, and stainless steel hoist for more than 15 years.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoding City, Hebei Province, China, About 1 hours' drive from Beijing. All our clients, from home or abroad, are warmly welcome to visit us.

3. Q: Can you do OEM?
A: Yes, we can do OEM products. Any customized size, packaging and logos are welcomed.

4. Q: How do you control your quality?
A: Quality is priority. Our factory people always attach great importance to quality controlling from the very beginning to the very end:
(1). All raw material we used are environmental-friendly;
(2). Skillful workers care every details in handling the producing and packing processes;
(3). Quality Control Department special responsible for quality checking in each process.
Production process standardization, process standardization, refinement.

---
