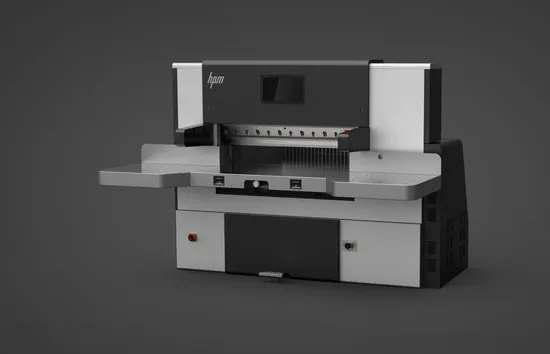

Automatic Guillotine Factory Price Program Control Hydraulic Heavy Duty Paper Cutting Machine

Product Description

SQZK130/137 Heavy Duty Copy Paper Material Cutting Machine

Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen; PLC control.
2. Eight languages to choose.
3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.
5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
7. With USB, transmit data, to convenient operator make programming and arrangement via PC.
8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
9. The backgauge is driven by a Inovance servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.
11. With automatic pushing paper function, the distance can be adjusted.

Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.
Technical Parameter

Model	Unit	130	137
Max.Cutting Width	cm	130	137
	inch	51.2	53.9
Max.Cutting Length	cm	130	145
	inch	51.2	57.1
Max. Cutting Height	mm	165	165
	inch	6.5	6.5
Min. Cutting Size (without false clam pplate)	mm	30	30
	inch	1.2	1.2
Min. Cutting Size (with false clamp plate)	mm	90	90
	inch	3.5	3.5
Front Table Length	cm	73	73
	inch	28.7	28.7
Max.Clamp Pressure	N	40000	45000
Max. Cutting Speed	time/min	43	43
Main Motor	KW	4	4
Net Weight	Kg	3900	4100
Gross Weight	Kg	4300	4500
Packing Size(L×W×H)	cm	300×175×210	3300×175×210

---
