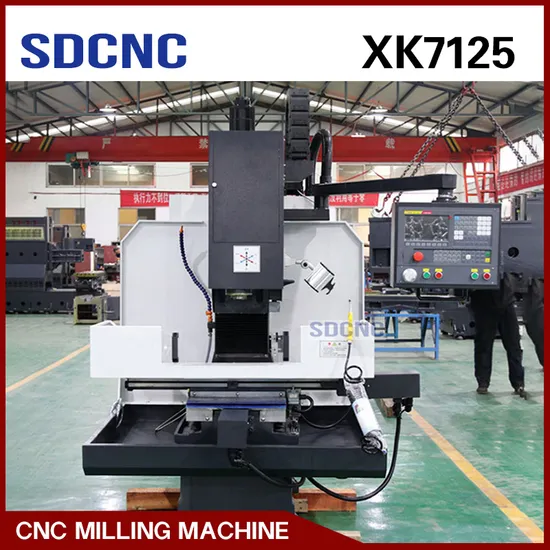

Fully Automatic Milling Machine Xk7125 CNC Metal Milling Machine

Product Description

Product Description
Product Parameters
The main specification:

Specification	Unit	XK7125A
Worktable size	KW	1270*254
T-slot	mm	3/16/65
Three axis travel (X/Y/Z)	mm	700*380*450
The distance from spindle nose to worktable	mm	60-510
Z axis torque	N.m	7
X axis torque	N.m	6
Y axis torque	N.m	6
Spindle taper		ISO40
X axis fast feeding	M/min	6
Y axis fast feeding	M/min	6
Z axis fast feeding	M/min	0.4
Stroke of spindle quill	mm	127
Spindle feeding automatical	Mm/rev	0-400
Spindle speed range	R/min	65-4500(16 steps speeds )
Positioning accuracy	mm	0.02
Repeat positioning accuracy	mm	0.01
Main motor	Hp	3(2.2 KW )
Machine size	mm	2000*900*2350
Machine net weight	Kg	1700

Standard Accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard

Optional Accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.

---
