High Temperature Aluminum Foil Fiberglass Thermol-Flex Heat Sleeve Exhaust Corrugated Pipe for Auto Protection

Product Description

High Temperature Aluminum Foil Fiberglass Thermol-Flex Heat Sleeve Exhaust Corrugated Pipe for Auto Protection
Product Parameters

Marterial	AG	AGA	AAG	AGG	KPA	AGAGA
Length	30mm~3m	30mm~6m	30mm~6m	30mm~6m	30mm~6m	30mm~6m
Layer Structure	Aluminum+Glass fiber	Aluminum+Glass fiber+Aluminum	Aluminum+Aluminum+Glass fiber	Aluminum+Glass fiber+Glass fiber	PET+kraft+ Aluminum	Aluminum+Glass fiber+Aluminum +Glass fiber+Aluminum
Heat resistance	200ºC~250ºC	200ºC~250ºC	200ºC~250ºC	200ºC~250ºC	100ºC~150ºC	200ºC~250ºC
Diameter Measures	φ5.5mm~φ12mm	φ5.5mm~φ100mm	φ10mm~φ100mm	φ10mm~φ100mm	φ20mm~φ100mm	φ10mm~φ100mm
Length tolerance	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%
Number of Knots	≥400	≥400	≥400	≥400	≥400	≥400
Bending Radius Approx	1.5×D	1.5×D	1.5×D	1.5×D	1.5×D	1.5×D
Temperature Resistance	-40ºC~250ºC	-40ºC~250ºC	-40ºC~250ºC	-40ºC~250ºC	-40ºC~150ºC	-40ºC~250ºC
Test Conditions	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 150ºC,24H	-40ºC,24H 250ºC,24H

Diameter	40mm-130mm	Application	Automobile manufacturing
Trademark	JNFLEX	Length	Customisable
Origin	Changzhou, China	Transport Package	Stardard Export Package
Colour	Silver	Production Capacity	8200 Meter/Meters Per Day
HS Code	701959	Near port	Shanghai,China
Classification	composite insulator	Material	Aluminum+Glass fiber

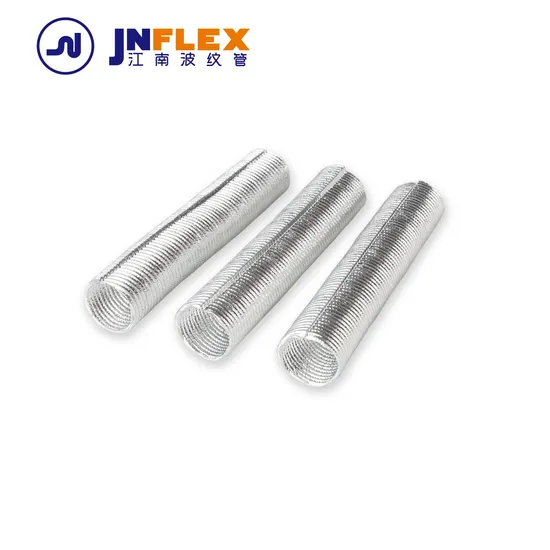

Product DescriptionThe Aluminum Foil Glass Fibre Heat Shield Tube is a state-of-the-art reflective corrugated solution designed to safeguard components from intense radiant heat environments. Its sophisticated multi-layer structure, featuring fiberglass laminated with aluminum and a robust aluminum foil exterior, ensures exceptional insulation for components that demand stable temperatures to achieve peak performance and efficiency.
The Aluminum Foil Glass Fibre Heat Shield Tube is versatile and can be applied to fuel and hydraulic lines, control cables, and a variety of essential components situated near engine and exhaust systems. Its protective capabilities extend across numerous applications, providing a reliable shield against extreme heat.Detailed Photos
Tailored layer combinations per customer specifications make this product ideal as a flexible heat-resistant sheath, heat preservation pipe, and heat protection hose in the marine, automotive, and yacht industries. It also excels as a flexible thermal sheath, protective tube, air carrier pipe, mechanical mesh sheath, cable protector, and organizer, adapting effortlessly to diverse industry needs.
Features:Engineered for lightweight and easy manipulation, this product allows for smooth formation of elbows and curves during installation, ensuring a seamless fit into complex layouts.Its innovative self-supporting design guarantees that bends remain secure, offering lasting reliability and structural integrity.Crafted to withstand metal fatigue, weathering, and exposure to most corrosive fumes and chemicals, this product delivers durable performance in demanding conditions.While versatile, it is best utilized in applications where continuous flexing is not required, maximizing its longevity and effectiveness.
ApplicationSpecialized ducts engineered to minimize noise within air-conditioning systems, enhancing acoustic comfort.Efficient component cooling solutions designed for engine bays, ensuring optimal performance and longevity of key parts.Expertly crafted air transfer and exhaust ducting cater to car and commercial vehicle auxiliary heaters, providing reliable thermal management.Designed to deliver fresh air supplies to passenger compartments in various vehicles, enhancing passenger comfort and ventilation.Highly effective air conditioning ducts tailored for automotives, off-highway, and specialty vehicles, ensuring comfort and efficiency.Advanced brake and driver cooling systems for motorsport applications, pushing the limits of performance and safety.Our Advantages

Unmatched Durability	Crafted from a combination of robust aluminum and high-quality paper, our tube is engineered for exceptional durability, lt can withstand the toughest conditions, ensuring that it won't succumb to heat, vibration, or wear andtear.
Easy Installation	Our tubes are a direct replacement for your existing hoses, ensuring a seamless connection without the need for extensive modifications or professional assistance.
Trusted Quality	Aluminum Foil Glass Fibre Heat Shield Tubes are backed by a team of product experts and superior automotive technology for unmatched quality and reliability.
Custom Fit for Your Vehicle	We can size our products to fit your make, model, and specific requirements. Help you upgrade your vehicle's intake system and experience the benefits of increased performance, durability and efficiency.

Company Profile
JNFLEX (CHANGZHOU) CO., LTD Strategically located in Changzhou City, Jiangsu Province, China, JNFLEX (CHANGZHOU) CO., LTD, since its inception in 1995, has been a vanguard in delivering innovative flexible connection and protection solutions across industries such as construction, automotive, high-speed rail, and steel metallurgy. Our commitment to quality is demonstrated by our ISO 9001 and IATF 16949, alongside European Conformity (CE) certifications.Our expansive 20,000-square-meter facility, which includes a substantial 18,000 square meters dedicated to factory operations, and supported by over 120 skilled employees,forms the backbone of our enduring partnerships with Fortune 500 companies, enabling our reach to Europe, Southeast Asia, Australia, South America, Africa, and beyond.
We are committed to exceeding customer expectations and warmly invite collaboration and business discussions to explore mutual growth opportunities.
Customer feedback
PACKING
Certifications
Partnerships
FAQ
Q1:Is there a insulator which has the inner diameter 33-35mm?
A1:We can make insulated pipes 35mm-40mm.
Q2:What is the current temperature the insulator can hold the heat?
A2:The insulated pipe can meet your needs, the heat insulation effect reaches 350-400ºC.
Q3:May I ask the maximum thickness of glass fiber on this pipe?
A3:Our common thickness is 0.14mm, the maximum thickness we did is 0.25mm.

---
