U1 Liquid Mineral Pure Drinking Water Honey Palm Juice Soft Drink Bottling Canning Plant Production Line Making and Filling Capping Packing Machine

Product Description

Product Description

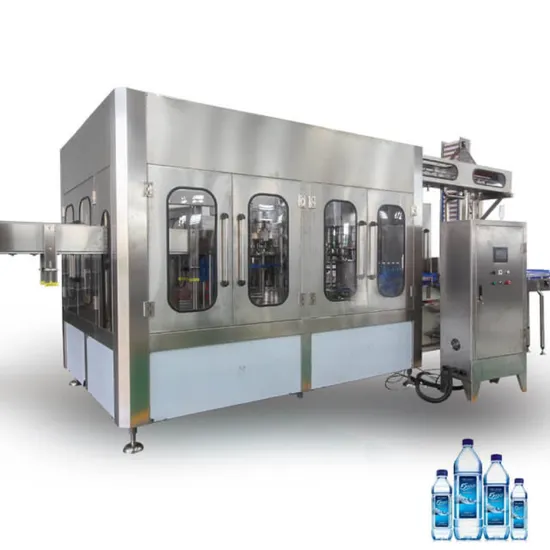

About Bottle Filling Machine - All 304/316 stainless steel construction - Air conveyor entering bottles - Stainless steel entrained plastic pads ensure minimal bottle bumping during washing. - Durable cleaning pump,high precision filling nozzle - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping - Capping effect is stable and reliable, Defective rate ≤0.15%
Main Features: . 1:Intelligent: The machine operation is controlled by the advanced touch screen, which can realize human-machine communication.
2:Convenience: To change the size of the filling bottle, only the star wheel and other components need to be replaced. 3:Cleaning:The parts in contact with the medium are made of stainless steel, with no dead ends in the process and easy to clean.
4:Conveying:It adopts an efficient capping system and has a complete self-control protection device.
5:Safety: Equipped with perfect overload protection device to protect equipment and operators. Product Paramenters

Model	CGF14125	CGF18186	CGF24248	CGF323210	CGF404012
Number of washing, filling and capping heads	14-12-5	18-18-6	24-24-8	32-32-10	40-40-12
Production capacity(600ml) (B/H)	3500~4000	6500~8000	12000~13000	15000-16000	18000-20000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm2 )	2~3
Motor power(kw)	Main motor 2.2kw	Main motor 3kw	Main motor 3.8kw	Main motor 5.5kw	Main motor 7.5kw
Overall dimensions (mm)	2400×1650 ×2500	2400×1830 ×2400	3100×2200 ×2400	3800×2800 ×2900	4600×2800 ×2900
Weight (kg)	2500	3500	4000	6500	8500

Industry-specific attributes
Machinery Capacity
8000BPH, Other, 6000BPH Packaging Material plastic Filling Material Water Filling Accuracy 99.8% Other attributes
Application
Beverage Packaging Type Bottles Automatic Grade Automatic Driven Type Electric Weight 3500 KG Warranty 1 Year Machinery Test Report Provided Video outgoing-inspection Provided Core Components Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine Voltage 220V/380V Brand Name U1 Dimension(L*W*H) 2400*1850*2400mm Key Selling Points Easy to Operate Product name Automatic Water Filling Machine Production Line Function Bottle Washing Filling Capping Processing Types liner Usage Water Filling Machine Material SUS304/316 Filling material Flowing Liquid Packaging and delivery

Packaging Details U1 High-Efficiency 8000BPH Automatic Small Scale Water Filling Machine
1.Heavy machine be packed in wooden case
2.Machines be packed in thick plastic films

Port Shanghai/Guangdong/Ningbo
Selling Units: Single item Single package size: 1X1X1 cm Single gross weight: 1.000 kg Certificates and partners

FAQ
Q: How long is your delivery cycle after you order the machinery? A: Generally it is 40 working days.
Q: Do you have a relevant after-sales system? A: We have a Perfect after-sales system. 1: 12 months warranty. 2: Many-to-one service, we will solve basic problems through phone, email, whatsapp, WeChat and video calls. The operation manual will be sent with the machine or via e-mail. 3: If conditions permit, the engineer will go to the buyer's factory to install and test the machine, and train the buyer's staff on how to operate and maintain the machine.
Q: If I want to buy a machine, what information do I need to tell you? A: 1: What liquid do you want to fill? 2: What is the capacity and height of the bottle? 3: What is the output in one hour? 4: Related water quality analysis reports, etc. 5: Required mechanical voltage
Q:How to ensure that you deliver goods on time and ensure the safety of my funds? 1:We guarantee the on-time delivery and quality of the equipment you purchase through the credit insurance service. 2:With the letter of credit, you can easily lock in the delivery time. 3:After visiting the factory/video watching the factory, you can ensure the authenticity of our bank account.
Q:How do you ensure the quality of the machine? 1:To ensure the accuracy of parts. We are equipped with a variety of professional processing equipment, plus professional processing methods accumulated over the years. 2:Before the machine is assembled, each part is inspected by the inspector. 3:Assemble machines, all with masters with more than 5 years of work experience to operate. 4:After all the equipment is completed, we will connect all the machines and allow at least 12 hours for a complete production line to test its stability.

---
