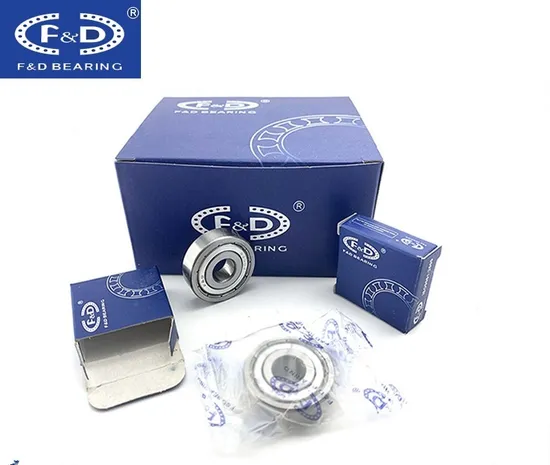

Motorcycle bearing 6201ZZ 6202 ZZ F&D bearing auto parts /roller bearing/wheeler bearing/pump bearing

Product Description

Motorcycle bearing 6201ZZ 6202 ZZ F&D bearing auto parts /roller bearing/wheeler bearing/pump bearing
Product Description

Deep groove bearing Specification 1.Bearing Factory more than 27 years
2.Company brand :"F&D bearing ,CBB bearing "look for distributor and agents.
3.OEM Accepted.
4.ISO19001.
The type of Motorcycle bearing 6201ZZ 6202 ZZ F&D bearing component materials used will determine the life span, reliability and performance of the bearings. However, there are many factors affecting the performance of the bearings which include the selection of the load carrying capacity, the rolling contact conditions, and the cleanliness of the operating environment and the dimensional stability of the bearing components.
Detailed Photos


Product Parameters

Fuda bearing company has adopted the carbon-chromium steel material(Gcr15) in our productionof the bearing.

Bearing No.	I.D		O.D		W		Loading Rating(KN)		Steel Ball Parameter		Max Speed
	d		D		B		Dynamic	Static	No.	Size	Grease	Oil
	mm	inch	mm	inch	mm	inch	Cr	Cor		mm	r/min	r/min
6000	10	0.3937	26	1.0236	8	0.3150	4.55	1.95	7	4.763	29000	34000
6001	12	0.4724	28	1.1024	8	0.3150	5.10	2.39	8	4.763	26000	30000
6002	15	0.5906	32	1.2598	9	0.3543	5.60	2.84	9	4.763	22000	26000
6003	17	0.6693	35	1.3780	10	0.3937	6.80	3.35	10	4.763	20000	24000
6004	20	0.7874	42	1.6535	12	0.4724	9.40	5.05	9	6.350	18000	21000
6005	25	0.9843	47	1.8504	12	0.4724	10.10	5.85	10	6.350	15000	18000
6006	30	1.1811	55	2.1654	13	0.5118	13.20	8.30	11	7.144	13000	15000
6007	35	1.3780	62	2.4409	14	0.5512	16.00	10.30	11	7.938	12000	14000
6008	40	1.5748	68	2.6772	15	0.5906	16.80	11.50	12	7.938	10000	12000
6009	45	1.7717	75	2.9528	16	0.6299	21.00	15.10	12	8.731	9200	11000
6010	50	1.9685	80	3.1496	16	0.6299	21.80	16.60	13	8.731	8400	9800
6011	55	2.1654	90	3.5433	18	0.7087	28.30	21.20	12	11.000	7700	9000
6012	60	2.3622	95	3.7402	18	0.7087	29.50	23.20	13	11.000	7000	8300
6013	65	2.5591	100	3.9370	18	0.7087	30.50	25.20	13	11.112	6500	7700
6014	70	2.7559	110	4.3307	20	0.7874	38.00	31.00	13	12.303	6100	7100
6015	75	2.9528	115	4.5276	20	0.7874	39.50	33.50	14	12.303	5700	6700
6016	80	3.1496	125	4.9213	22	0.8661	47.50	40.00	14	13.494	5300	6200

Bearing No.	I.D		O.D		W		Loading Rating(KN)		Steel Ball Parameter		Max Speed
	d		D		B		Dynamic	Static	No.	Size	Grease	Oil
	mm	inch	mm	inch	mm	inch	Cr	Cor		mm	r/min	r/min
6200	10	0.3937	30	1.1811	9	0.3543	5.10	2.39	8	4.763	25000	30000
6201	12	0.4724	32	1.2598	10	0.3937	6.10	2.75	7	5.953	22000	26000
6202	15	0.5906	35	1.3780	11	0.4331	7.75	3.60	8	5.953	19000	23000
6203	17	0.6693	40	1.5748	12	0.4724	9.60	4.60	8	6.747	18000	21000
6204	20	0.7874	47	1.8504	14	0.5512	12.80	6.65	8	7.938	16000	18000
6205	25	0.9843	52	2.0472	15	0.5906	14.00	7.85	9	7.938	13000	15000
6206	30	1.1811	62	2.4409	16	0.6299	19.50	11.30	9	9.525	11000	13000
6207	35	1.3780	72	2.8346	17	0.6693	25.70	15.30	9	11.112	9800	11000
6208	40	1.5748	80	3.1496	18	0.7087	29.10	17.80	9	12.000	8700	10000
6209	45	1.7717	85	3.3465	19	0.7480	32.50	20.40	10	12.000	7800	9200
6210	50	1.9685	90	3.5433	20	0.7874	35.00	23.20	10	12.700	7100	8300
6211	55	2.1654	100	3.9370	21	0.8268	43.50	29.20	10	14.288	6400	7600
6212	60	2.3622	110	4.3307	22	0.8661	52.50	36.00	10	15.081	6000	7000
6213	65	2.5591	120	4.7244	23	0.9055	57.50	40.00	10	16.669	5500	6500
6214	70	2.7559	125	4.9213	24	0.9449	62.00	44.00	11	16.462	5100	6000
6215	75	2.9528	130	5.1181	25	0.9843	66.00	49.50	11	17.462	4800	5600
6216	80	3.1496	140	5.5118	26	1.0236	72.50	53.00	11	18.256	4500	5300
6217	85	3.3465	150	5.9055	28	1.1024	83.50	64.00	11	19.844	4200	5000
6218	90	3.5433	160	6.2992	30	1.1811	96.00	71.50	10	22.225	4000	4700

Bearing No.	I.D		O.D		W		Loading Rating(KN)		Steel Ball Parameter		Max Speed
	d		D		B		Dynamic	Static	No.	Size	Grease	Oil
	mm	inch	mm	inch	mm	inch	Cr	Cor		mm	r/min	r/min
6300	10	0.3937	35	1.3780	11	0.4331	8.20	3.50	6	7.144	23000	27000
6301	12	0.4724	37	1.4567	12	0.4724	9.70	4.20	6	7.938	20000	24000
6302	15	0.5906	42	1.6535	13	0.5118	11.40	5.45	7	7.938	17000	21000
6303	17	0.6693	47	1.8504	14	0.5512	13.50	6.55	7	8.731	16000	19000
6304	20	0.7874	52	2.0472	15	0.5906	15.90	7.90	7	9.525	14000	27000
6305	25	0.9843	62	2.4409	17	0.6693	21.20	10.90	7	11.500	12000	14000
6306	30	1.1811	72	2.8346	19	0.7480	26.70	15.00	8	12.000	10000	12000
6307	35	1.3780	80	3.1496	21	0.8268	33.50	19.10	8	13.494	8800	10000
6308	40	1.5748	90	3.5433	23	0.9055	40.50	24.00	8	15.081	7800	9200
6309	45	1.7717	100	3.9370	25	0.9843	53.00	32.00	8	17.462	7000	8200
6310	50	1.9685	110	4.3307	27	1.0630	62.00	38.50	8	19.050	6400	7500
6311	55	2.1654	120	4.7244	29	1.1417	71.50	45.00	8	20.638	5800	6800
6312	60	2.3622	130	5.1181	31	1.2205	82.00	52.00	8	22.225	5400	6300
6313	65	2.5591	140	5.5118	33	1.2992	92.50	60.00	8	24.000	4900	5800
6314	70	2.7559	150	5.9055	35	1.3780	104.00	68.00	8	25.400	4600	5400
6315	75	2.9528	160	6.2992	37	1.4567	113.00	77.00	8	26.988	4300	5000
6316	80	3.1496	170	6.6929	39	1.5354	123.00	86.50	8	28.575	4000	4700

Packaging & Shipping

Packaging & Shipping for F&D bearing

Packaging Detail	1.Industrial Exporting Package with anti-tarnish paper/Carton/Pallet 2. Individual plastic/Carton/pallet 3. As the customers' requirements
Delivery Detail	30-45 days for normal order

Company Profile

One of the leading bearing manufacturers and exporters in China China FUDA Bearing Corporation was established in 1996 and is one of the leading bearing manufacturers and exporters in China. FUDA specializes in the design and production of high quality, high precision deep groove ball bearings and pillow block bearings. At present, the Corporation has more than 1,000 employees, a fixed assets of 1.05 billion yuan, and produces 250 million sets of bearings annually. In 2010, the Corporation achieved bearing sales of 650 million yuan. The Corporation's products are widely used in more than 50 countries and regions under 2 independent brands, namely "F&D" and "FLATE". Now Fuda created new brand "CBB".

Research and Development Since 2008, the Corporation has set up a Research & Development Center equipped with multiple laboratories used for precision measurement, mechanical testing, lifespan testing, and physicochemical testing, to continuously upgrade its skills and raise its manufacturing standard and product's precision. Our workshops are installed with a series of advanced numerically-controlled, grinding and assembly equipment that utilize centralized filtration and cooling systems. Together with the production equipment suppliers, we developed these grinding, ultra-precision, fully automated integrated production lines, and own the intellectual property rights. The precision level of the products are at P5 level and above, with noise level reaching Z4, V4 and above. Some of our projects have exceeded the 30% precision reserves. Our products are widely used in electric motors, automobiles, motorcycles, household appliances, textile, electric tools and water pump equipment industries, both locally and globally.

Why Choose US
About US
Fuda Bearing Corporation Co., Ltd. was founded in 1996, and became one of Chinese largest bearing manufacturers and exporters. which specializes in designing and producing deep groove ball bearings, pillow block bearings with high quality & precision. After more than 10 years'hard work, Fuda has developed into a high-tech company that is capable of bearing research & development, manufacturing, and marketing. The Corporation consists of 5 subsidiaries including Zhejiang Fuda Bearing Co., Ltd, Flate Precision Tech. Co.,Ltd, Cixi Unit Machinery Co., Ltd, Cixi Oyat Bearing Co.,Ltd, Fuda Bearing Corporation Imp.& Exp.Co.Ltd. Now Fuda has employees more than 1000 with the fixed assets of RMB 1.05 billion. And the annual production capacity can reach 250 million sets. In 2010, the bearing sales volume was RMB 650 millions.Besides it creates two self-owned brands called F&D and FLATE. The products are well received in more than 50 countries and regions.

Installation Instructions


Quality Assurance
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team. As per the regulation of three-dimensional management and multiple checks, each product was inspected by the producer, inspector, inspection department and quality department elaborately, especially to the important inspection items and precision inspection item.

Our Advantages


Certifications


Our Service
High quality, good credit and excellent service are the tenet of our company. Customers'satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
Our Trade Partner
CONTACT US

	PENGQIAO INDUSTRIAL PARK HENGHE TOWN CIXI CITY ZHEJIANG CHINA
Web:	fudabearing.en.made-in-china.com

Thanks for reviewing Motorcycle bearing 6201ZZ 6202 ZZ F&D bearing auto parts /roller bearing/wheeler bearing/pump bearing !!!

---
