HY-R09 Transformer four-axis CNC automatic winding machine

Product Details

Product Description

Product Description
Transformer CNC front four-axis winding machine

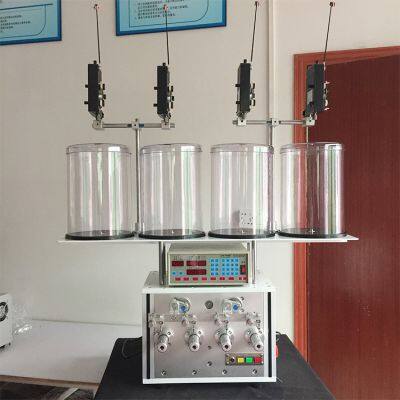

HY-R09 Transformer four-axis CNC automatic winding machine
Winder function:
Controller with the latest sync with the lotus root cable; high precision; high intelligent mode; self-test function. Including setting error, speeding tracking and speed of more accurate, with speed detection function, can automatically reduce the spindle speed to the most stable state.
Winder use
The purpose of a winding machine is to coil around a variety of different sizes (transformer coils, motor windings, inductors, etc.).
Winder advantages:
1. AC inverter, brushless motor, energy saving, easy to operate, maintenance-free.
2. Multi-functional microcomputer design, data easy to set, and shut down to save data.
3. In the middle of the winding can be amended around the cable head position, more convenient for a special coil or high precision coil winding.
4 special function design, can assist from around the point and width position to find.
5. 0 ~ 999 sets of steps to set the capacity, special motor winding frequency and precision stepper motor cable, can be easily set forward and reverse, sparse winding work.

Applicable diameter	0.03-0.7mm
Maximum revolutions	9000 rpm
Number of spools	4
Cable width	0-110mm
Winding motor	Brushless 600W
Cable motor	Stepper
Number of memory groups	1000 groups
Power supply voltage	AC220V / 50HZ
Machine Size (mm)	L1000 * W460 * H520
Machine weight	76kg

---
