Product Description

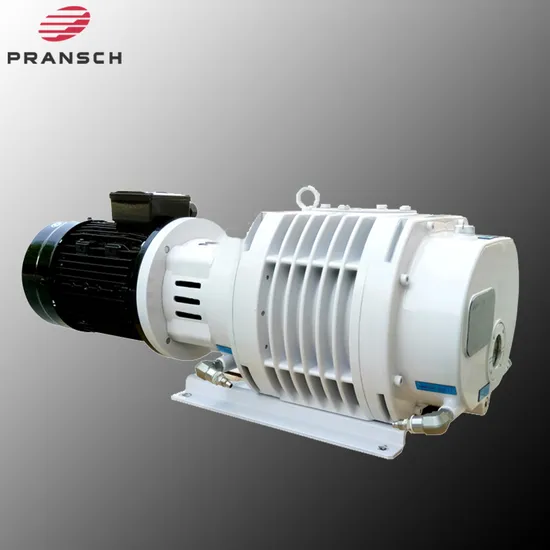

MBC0500 Mechanical Boosters / Roots Vacuum Pumps
Our MB-C, MB-E, and MB-Y mechanical vacuum booster are oil free vacuum pumps that are running together with the backing pumps for all rough and high-vacuum applications where large pumping speeds are needed. Our vacuum boosters operate totally contact-free and with no sealing fluids such as oil or water exiting in the vacuum chamber. MB-Y vacuum boosters are equipped with bypass valve.
Economical
Due to the large number of available models, the pumping speed and ultimate vacuum can be customized exactly according to specific processes. The high pumping efficiency ensures further increase in the economy of operating costs.
Safe operation
Tried-and-tested engineering technology together with a robust design enables safe operation to happen. The MB-Y series' integrated bypass valve allows the vacuum boosters to operate at a high pressure level.

Technical data	50HZ	MBC0500
Pumping Speed	m3/h	500
Ultimate pressure	mbar(abs)	1×10-3
Diameter	"	VG63/ISO100
Voltage	V	320-440
Nominal motor rating	Kw	2.2
Current	A	3.9/4.0
Nominal speed	Min-1	900/1120
Sound	dB(A)	68
Oil (max)	L	4.6/5.0
Weight	Kg	79.5

Application Ranges
Metallurgy Simulation chambers Packaging industry Freeze/vacuum-drying Thin-film technology Electron beam welding Chemistry and process technology Industrial leak detection systems Steel degassing Load-lock chambers vacuum impregnation vacuum degass vacuum pre-discharging gas exhausting Glass and wear protection coating Decorative coating Vacuum furnaces Space simulation chambers for the processes in vacuum distillation, vacuum concentration and vacuum drying in chemical industry, medicine, food and beverage, light industry and textile industry

---
