Automatic Feeding System Pig Feed Silo

Product Description

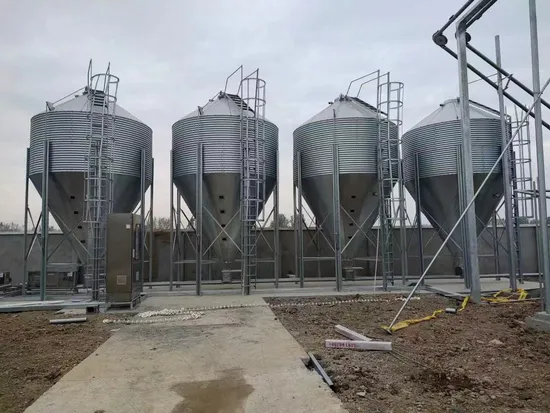

Automatic Feeding System Pig Feed Silo
Details
1. 275g/m2 two-sided galvanized sheet with the features of high intensity, anti-corrosion, long service life and easy to install.
2. 3 different specifications and 9 model numbers can meet the different feed storage requirements.
3. Special top cover opener design, easy to operate in windy weather.
4. Special designed brim on the joint of hopper body and hopper panel and seal strip between panel sheets can prevent rainwater entering the silo to cause moldy.
5. Special designed hopper panel can avoid feed piling up.
Equipped ladder and window are convenient for maintaining the equipment and checking feed condition.
6. Different boot and outlet can fulfill complex feed conveying requirements.
7.Customized pneumatic feeding system.
Parameter

Item	Specification	Stand	Silo Weight kg	Diameter mm	Height mm
1	2.7m3/Φ1530/1.7T	4	238	1530	3800
2	4.1m3/Φ1530/2.7T	4	282		4616
3	6.4m3/Φ2140/3.6T	4	370	2140	4705
4	9.3m3/Φ2140/5.4T	4	434		5521
5	12.2m3/Φ2140/7.3T	4	495		6337
6	15.8m3/Φ2750/10.5T	6	637	2750	5716
7	20.6m3/Φ2750/13.8T	6	730		6532
8	25.5m3/Φ2750/17.1T	6	820		7348
9	32.1m3/Φ3669/22T	8	1082	3669	6780
10	40.6m3/Φ3669/27T	8	1221		7596
11	49.1m3/Φ3669/32T	8	1360		8412
