Basic Info.
Galvanometer Scanner
High Speed Digital Scanning Galvanometer
Aulaser Light Source
Fiber Jpt Laser 100wtomatic
Focusing Lens
Singapore Wavelength Focusing Lens
Control Software
Specialized Laser Marking Software
Computer
Industrial Control Gigabyte Quad Core 3470CPU+LCD
Automatic Mobile Platformhickness
Full Servo Motor, Screw Slider
Automatic Lifting Mechanism
Full Servo Motor, Screw Slider
Automatic Flipping Mechanism
Full Servo Motor, Screw Slider
Control Program
PLC Can Program Freely
Touch Screen
7 Inches Adjustable Program Touch Screen (Xinjie)
Transport Package
Wooden Box
Production Capacity
300sets/Month
Product Description
Product Description
100W Laser Wire Peeling Machine with highly efficent.
Machine Features
1.Adopt the latest manufacturing process,to make the equipment runs smoothly and accurately,making winding and peeling more stable.
2.Optimize mechanical structure design, improve the overall performance of the equipment, further reduce the repeated positioning error of the equipment.
3.Adopt hight performance servo motor, to make operation is more accurate.
4.Products are widely used in electronics,digital,mobile phones, automobile and other industries.
Main Technique Parameter
| Product Name | Youhui 100W Flat Wire Laser Peeling |
| Paint Stripping Efficiency: | 2.4*0.24 Flat wire coil dual pin single side paint removal: 1600PCS/H |
| Laser Wavelength: | 1064nm |
| Depainting Range: | 110mm×110mm |
| System Operating Environment: | Windows7 |
| voltage Supply: | AC220V 20A50HZ |
| Size: | 800mm×950mm×1450mm |
| Weight: | 160KG |
| Laser Wavelength | 1064nm |
| Laser Power | 100w |
| Laser Repetition Frequency | 20-400kHz |
| Beam Quality M2 | <1.4 |
| Marking Speed | ≤12000mm |
| Repeatability | ±0.01mm |
| Minimum Character | 0.05mm |
| Marking range | 110*110mm |
| Cooling Method | Forced air cooling |
| Working Power Supply | 220-230 V /50 Hz |
| | |
Product show

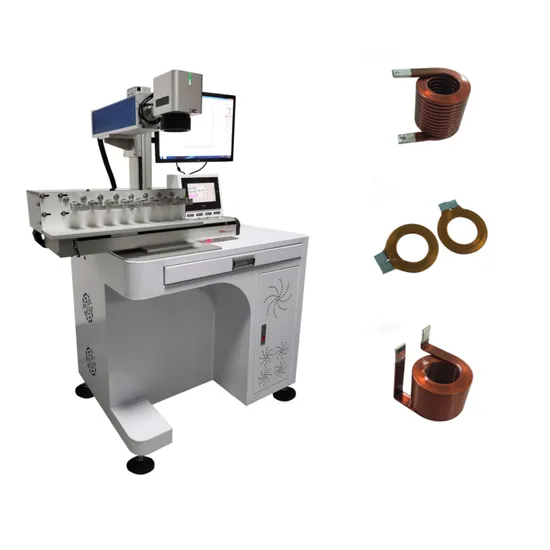

YH-BQ1012 100W Flat Wire Laser Peeling Machine 220V by Huizhou Youhui Intelligent Devices Co., Ltd. This laser peeling machine is designed to efficiently remove paint from various surfaces. With a 1-year warranty and excellent after-sales service, it guarantees high-quality performance. The machine is delivered in a sturdy wooden box for safe transportation.
Contact us.
Company Profile
Huizhou Youhui Intelligent Devices Co., Ltd. is a leading group company with a diversified portfolio of expertise in two core areas: machinery manufacturing, production, R&D, operation, and mechanical parts processing.
With our dedication to precision engineering, we have earned a reputation for excellence and innovation in both fields.
Whether you need precision mechanical products or high-quality mechanical parts processing, Huizhou Youhui Intelligent Equipment Co., Ltd. is your trusted partner.
We can produce various kind of air coil winding machines, bobbinless coil winding machines according to your air core coils or bobbinless coils details. We have single-axis and multi-axis CNC air coil winding machines.
Contact us today to discuss your requirements and let us help you realize your mechanical freedom aspirations.
Why Choose Us
Logistics and Packaging
Contact US
Get in touch with us today to discuss your requirements and let us assist you in realizing your mechanical freedom aspirations. Contact Huizhou Youhui Intelligent Devices Co., Ltd. now.
>>
