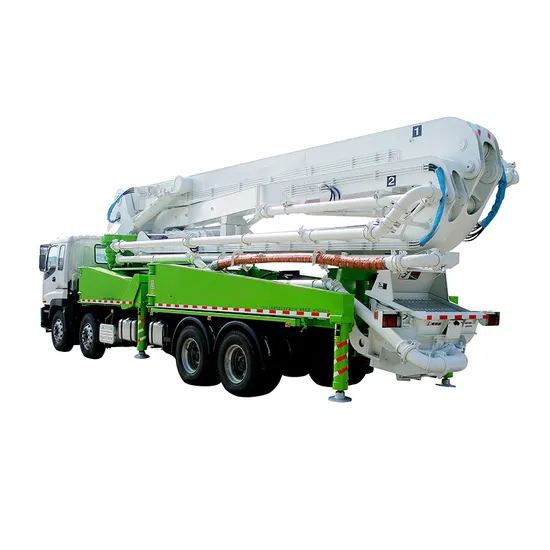

China Top Brand Hdl5400thb47 Concrete Pump 47m Pump Truck

Product Description

China Top Brand Hdl5400thb47 Concrete Pump 47m Pump Truck

Product Description

HDL5400THB47 concrete pump truck integrates high reliability, economy, safety and durability, and the chassis, power, electric control, hydraulic pressure and pumping system are reasonably matched. The boom is flexible and fast, and the whole vehicle is easy to move. It can meet the harsh requirements of concrete conveying of various grades. It is especially suitable for ideal construction equipment in beam making fields, bridges, tunnels, airports, ports, indoor construction and other occasions.
Product Parameters

Max. size aggregate	mm	40
Max. concrete pressure(L/H)	MPa	7/12
Hydraulic system pressure	MPa	32
Main hydraulic pump displacement	ml/r	190
Concrete cylinder bore & stroke	mm	Φ230×1800
Main hydraulic cylinder stroke	mm	1800
Concrete valve type	/	S-Valve
Hydraulic tank capacity	L	400
Hopper charging height	mm	≤1500
Hopper capacity	m3	0.7
Water tank capacity	L	285
Concrete slump	mm	120-230
Concrete pipeline bore	mm	Φ125
Max. horizontal reach	m	19.1
Max. pumping depth	m	12.2
Boom unfolding height	mm	6750
Boom unfolding angle	(°)	90/180/256
Section lenght	mm	7300/5950/5910
Slewing range	(°)	±365
Outrigger longitudinal span	mm	5510
Front outriggers transverse span	mm	4880
Rear outriggers transverse span	mm	2280
Chassis engine power	kW/hp	228/310
Running speed	km/h	≤85
Min.turnning radius	m	8.8
Approach & Departure angle	(°)	20.5/10.5

Contact
Send Message or Chat Now for Best price
Damon Han/Sales Manager

Goldzim Construction Machinery(Qingdao)Co.,Ltd.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
